Keyed One Side

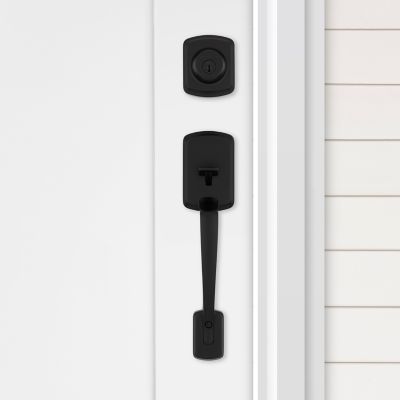

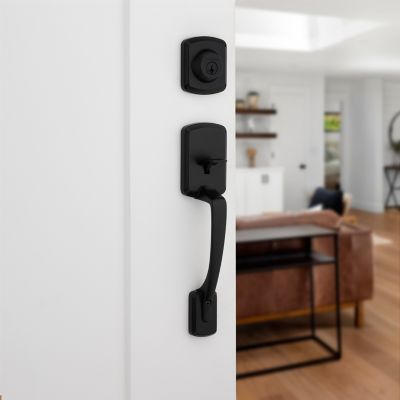

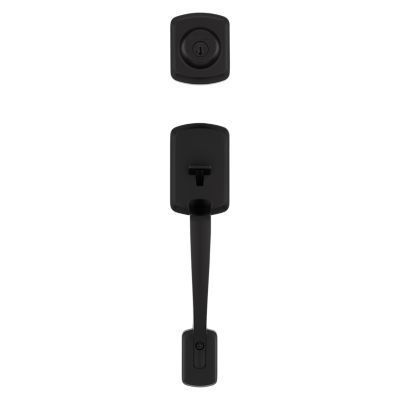

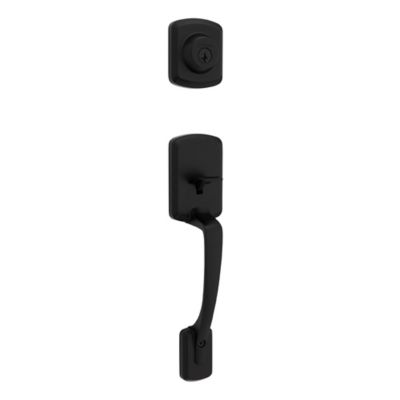

Henley Handleset - Deadbolt Keyed One Side (Exterior Only) - featuring SmartKey
687HYH LIP 514 SMT
Item shown is Exterior Only, Interior Handles are sold separately

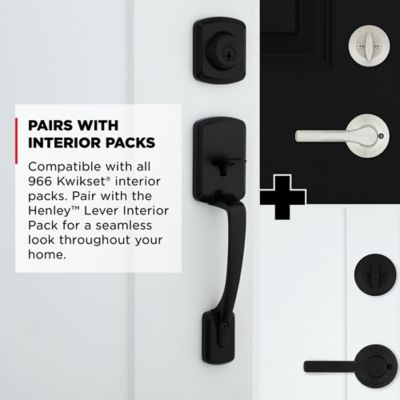

Available Interior Handle
Why Required Heading in Sitefinity
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Duis quam leo, efficitur non congue in, finibus at enim. Donec ut arcu vitae lacus tempor iaculis. Interdum et malesuada fames ac ante ipsum primis in faucibus. Pellentesque sed magna laoreet, dictum ex non, lacinia nulla. Nam eu eros in enim sodales efficitur.
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.

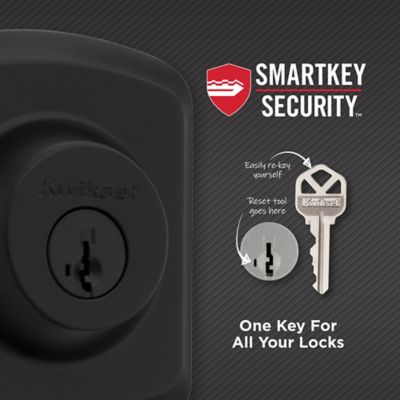

Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Non-functioning handleset - Exterior Pack only
- Latch is 20 minute fire rated with round corner face
- Handleset Deadbolt ANSI/BHMA Grade 3 Certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- 1/2 in. latch throw
- 1 inch deadbolt throw

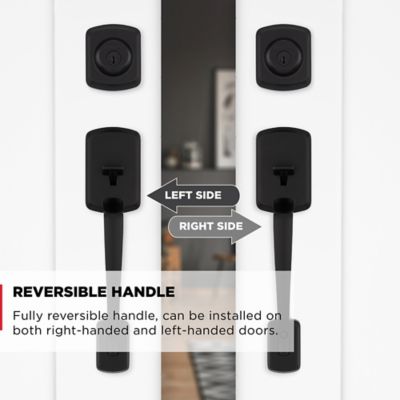

- Fully reversible lever, can be installed on both right handed and left handed doors

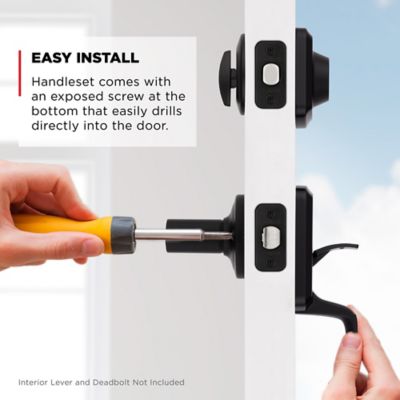

- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Similar Products
4 Finishes
Camino Handleset - Deadbolt Keyed One Side (Exterior Only) - with Pin & Tumbler
Signature Series
6 Finishes
San Clemente Handleset - Deadbolt Keyed One Side (Exterior Only) - featuring SmartKey
Signature Series
5 Finishes
San Clemente Handleset - Deadbolt Keyed One Side (Exterior Only) - with Pin & Tumbler
Signature Series
5 Finishes
Camino Handleset - Deadbolt Keyed One Side (Exterior Only) - featuring SmartKey
Signature Series
4 Finishes
Vancouver Handleset - Deadbolt Keyed One Side (Exterior Only) - featuring SmartKey
Signature Series
5 Finishes
Amador Handleset - Deadbolt Keyed One Side (Exterior Only) - featuring SmartKey
4 Finishes
Prague Handleset - Deadbolt Keyed One Side (Exterior Only) - featuring SmartKey
Signature Series
5 Finishes
Tavaris Handleset - Deadbolt Keyed One Side (Exterior Only) - featuring SmartKey
Signature Series

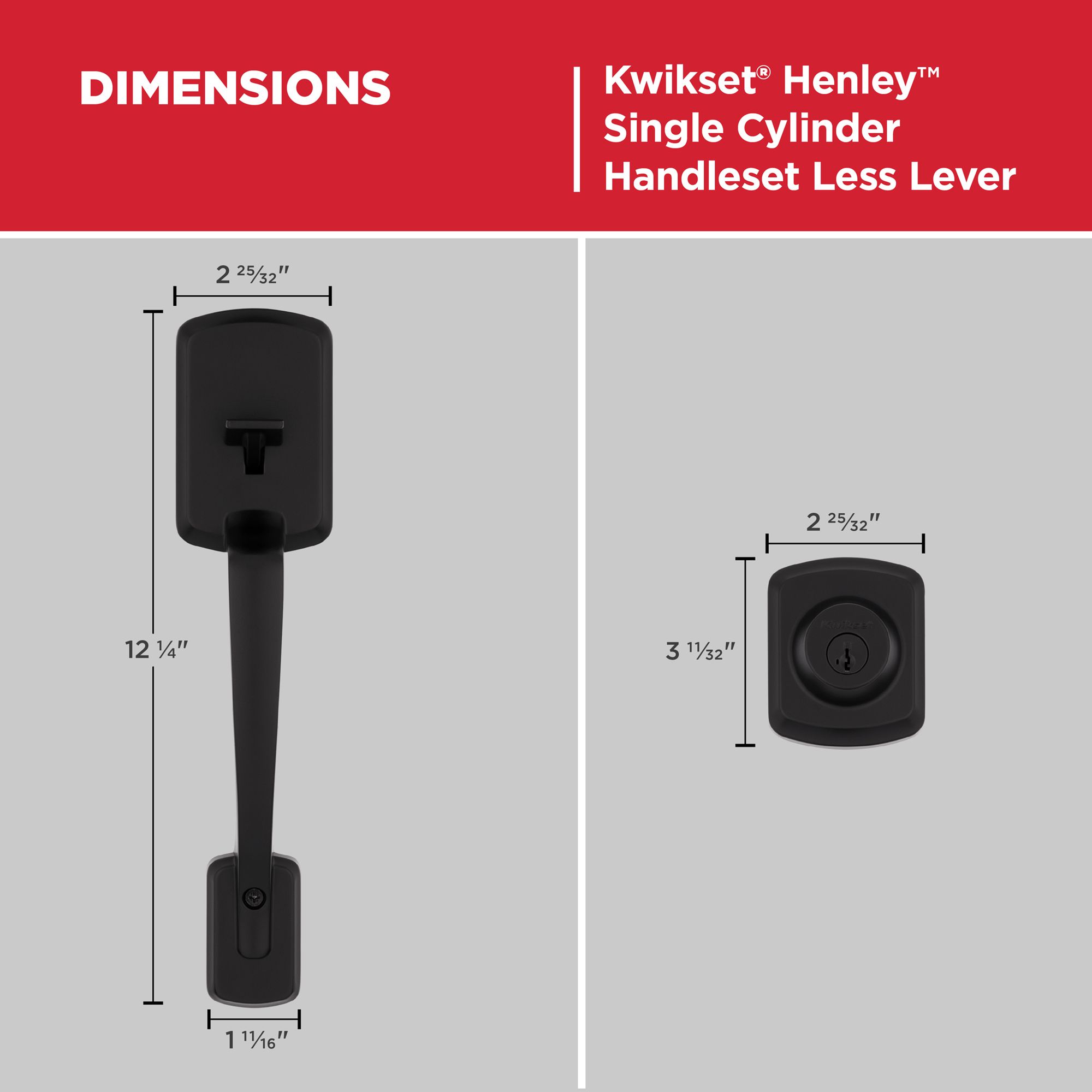

Specifications
All Measurements are in Inches
-
Kwikset FamilyHenley
-
Product TypeHandleset
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?Yes
-
ANSI GradeHandleset Grade 3
-
UL Time RatingNot rated
-
Min Door Thickness1-3/4
-
Max Door Thickness1-3/4
-
Lever HandlingReversible
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
