Pull Only

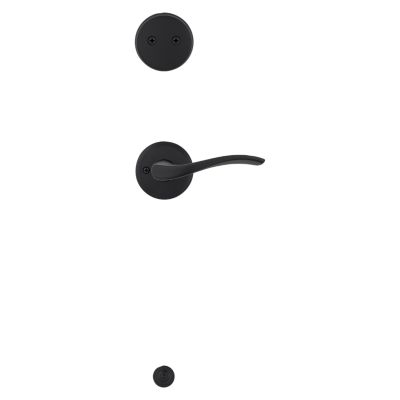

Sedona Interior Pack - Left Handed - Pull Only - for Kwikset Series 819 Handlesets
973SEL LH 514
Features
- Interior Lever for Handleset: Match your home décor. Interior door lever and deadbolt turn piece are for all 819 Kwikset® handlesets. Interior hardware only
- Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
- Fits Standard Doors: Fits standard size doors 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
- Adjustable Latch: With just a twist during installation, the latch backset can be adjusted to either 2-3/8" or 2-3/4" in order to fit all standard door preparations
- Certified Trusted Quality: Security, Durability and Finish are Grade AAA BHMA certified, designed for the highest level of security and the toughest environments with frequent use
- Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilySedona
-
Product TypeLever
-
StyleTransitional
-
Entry Has SmartKey?No
-
Has Microban?Yes
-
ANSI GradeAAA
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-21/32
-
Assembled Width5-19/32
-
Assembled Length2-17/32
-
Lever HandlingLeft
-
ADA CompliantYes
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
