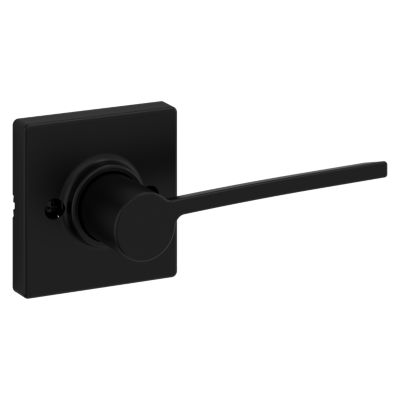

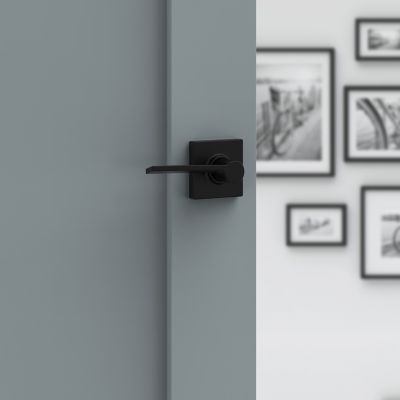

Ladera Lever (Square) - Hall/Closet

200LRL SQT 514

Features

  • Non-Locking Passage: Use on doors requiring no locking method, latch allows door to be opened or closed, recommended for closets and other doors where security is not needed
  • Never Sag Lever: Our exclusive design utilizes dual compression springs to keep the lever straight and horizontal over the lifetime of the handle without the risk of sagging

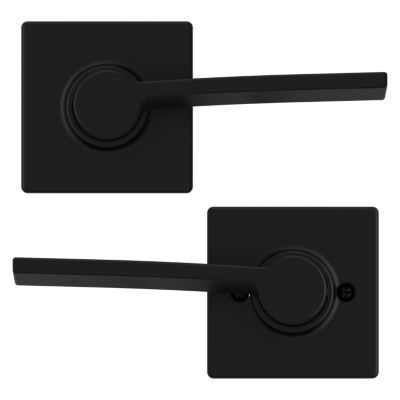

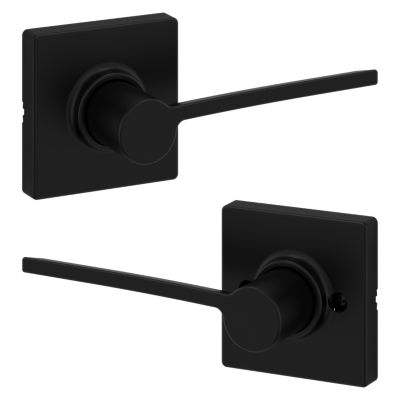

  • Easy Install Reversible Lever: Do it yourself, installs in minutes with just a screwdriver. Reversible handle for left- or right-handed doors, detailed directions provided
  • Fits Standard Doors: Fits standard size doors 1-3/8" to 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
  • Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home

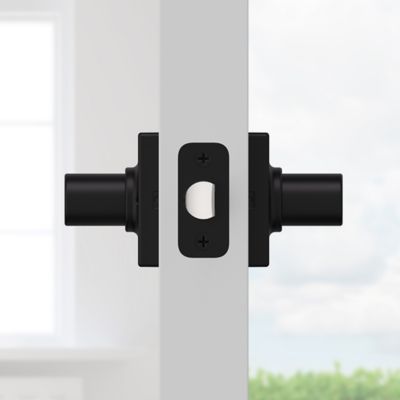

  • Box Includes: Box includes passage lever, adjustable latch with round and square front options or drive-in collar, round corner strike, designer rosette, screws and Allen wrench
  • Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
  • Microban Protection: Kwikset’s door hardware is treated with Microban, this offers powerful product protection that is 99.9% cleaner than an unprotected surface

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    Ladera
  • Product Type
    Lever
  • Style
    Contemporary
  • Entry Has SmartKey?
    No
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 3
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    4-3/16
  • Assembled Length
    1-7/8
  • Lever Handling
    Reversible
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
