Keyed One Side

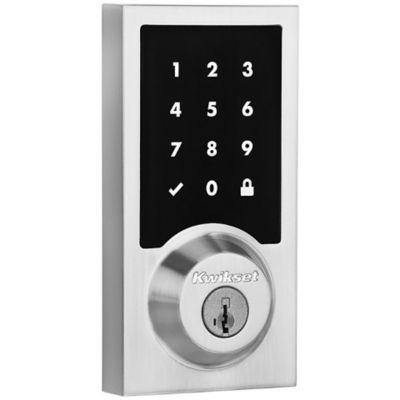

916 Smartcode Contemporary Electronic Deadbolt with Zigbee Technology
916CNT ZB 15
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Comes with 2 keys
- Deadbolt Latch is 20 minute fire rated with round corner face
- ANSI/BHMA grade 2 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- Includes round deadbolt strike
- 1 in. deadbolt throw
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
- Requires 4 AA batteries, included
- Keypad stays lit for 5 seconds after inactivity
- Featuring Home Connect™ technology, your electronic lock can now interface with security and home automation systems using a ZigBee radio that connects to an in-home hub, such as a wireless router
Compatible Technologies
-
Alexa
-
SmartThings
Similar Products
4 Finishes
914 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
3 Finishes
Halo Keypad Wi-Fi Enabled Smart Lock
3 Finishes
Aura Bluetooth Enabled Smart Lock
4 Finishes
Halo Touchscreen Wi-Fi Enabled Smart Lock
2 Finishes
Halo Touch Contemporary Fingerprint Wi-Fi Enabled Smart Lock
4 Finishes
914 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology
4 Finishes
Home Connect 620 Contemporary Keypad Connected Smart Lock with Z-Wave Technology
4 Finishes
918 HomeConnect Contemporary Electronic Deadbolt with Z-Wave Technology
2 Finishes
Halo Select Contemporary Touchscreen Wi-Fi and Matter Enabled Smart Lock
Specifications
All Measurements are in Inches
-
Kwikset FamilySmartCode Deadbolts Touchscreen with Home Connect
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?Yes
-
ANSI GradeGrade 2
-
UL Time Rating20 min
-
Min Door Thickness1-3/8
-
Max Door Thickness2
-
Assembled Height5-17/32
-
Assembled Width2-25/32
-
Assembled Length1-3/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
-
Voice Control EnabledAlexa via Samsung SmartThings ; Google Assistant via Samsung SmartThings
-
Lock TechnologyZigbee
-
Hub RequiredRequires Smart Hub
-
Electronic Works WithSmartThings ; Alexa
-
# Of Codes30
-
Battery Type Required4 AA, included
