Keyed One Side
Home Connect 620 Traditional Keypad Connected Smart Lock with Z-Wave Technology
HC620 TRL ZW700LR 15 SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

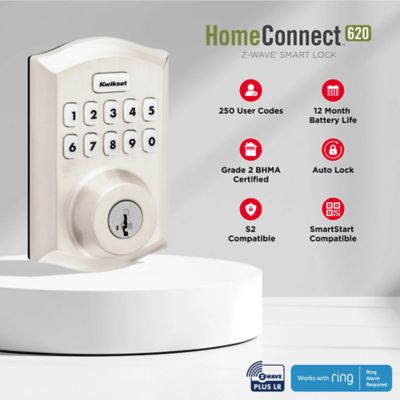

Features
- CONVENIENT KEYLESS ENTRY: Keypad entry makes coming and going secure and simple. Easily lock and unlock your door without having to take out your keys
- Z-WAVE 700 LONG RANGE WHOLE HOME COVERAGE: Z-Wave Long Range provides a direct connection to your Z-Wave compatible hub and coverage throughout the home.
- ENHANCED SECURITY AND SEAMLESS INTEGRATION: Advanced Z-Wave security with S2 encryption, protecting from hackers. SmartStart technology for effortless integration with compatible Z-Wave hub.
- RING ALARM COMPATIBLE: Control and check the status of your Kwikset HomeConnect 620 directly through the Ring Alarm system and app – Requires a Ring Alarm smart hub
- EASY CODE MANAGEMENT: Customize up to 250 user codes and 1 programming code that lets you edit or delete as needed
- AUTO-LOCK: Enjoy security and peace of mind knowing your door will lock itself on a set schedule. Customize auto-lock for every 30 sec, 1 min, 3 min, 5 min or 10 min
- 12-MONTH BATTERY LIFE: Battery lasts at least 12 months, giving you more time between battery replacements. Uses 4x AA alkaline batteries (batteries included)

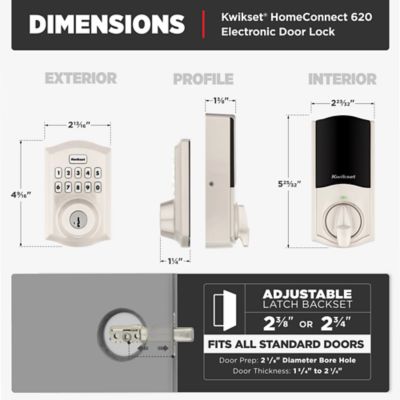

- EASY INSTALL: Do it yourself, installs in minutes with just a screwdriver, fits doors between 1-3/8" and 2" thick with adjustable deadbolt backset from 2-3/8" to 2-3/4"
- CERTIFIED ADVANCED SECURITY: Security, Durability, and Finish are Grade 2 BHMA certified, up to 2.5x stronger than Grade 3 BHMA Certified lock sets
- FEATURING SMARTKEY SECURITY: Protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Compatible Z-wave controllers or hubs are required
Compatible Technologies
-
Google Assistant
-
Alexa
-
SmartThings
-
Google Home
-
Ring
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyHome Connect
-
Product TypeDeadbolt
-
StyleTraditional
-
SmartKeyYes
-
Has Microban?Yes
-
ANSI GradeGrade 2
-
UL Time Rating20 min
-
Min Door Thickness1-3/8
-
Max Door Thickness2
-
Assembled Height4-9/16
-
Assembled Width2-13/16
-
Assembled Length1-1/4
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
-
Voice Control EnabledAlexa via Z-Wave ; Alexa via Proprietary Bridge/Gateway ; Google Assistant via Z-Wave ; Google Assistant via Proprietary Bridge/Gateway
-
Lock TechnologyZ-Wave700LR
-
Hub RequiredHub required for remote access
-
Electronic Works WithAlexa ; Google Home ; Google Assistant ; Ring ; SmartThings
-
# Of Codes250
-
Battery Type Required4 AA, included
-
Body MaterialZinc
-
Key Quantity Per Pack2
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
