Keyed One Side

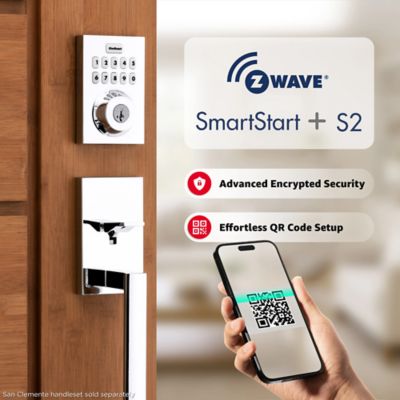

Home Connect 620 Contemporary Keypad Connected Smart Lock with Z-Wave Technology
HC620 CNT ZW700LR 26 SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Integration Partners
Kwikset smart locks are offered by leading smart home solution providers and security systems. A total home security solution begins with a Kwikset smart lock. Complete your smart home today!
Vivint
LittleBird
Compatible Technologies
-
Google Assistant
-
Alexa
-
SmartThings
-
Google Home
-
Ring
-
Wink
-
Vera
Similar Products
4 Finishes

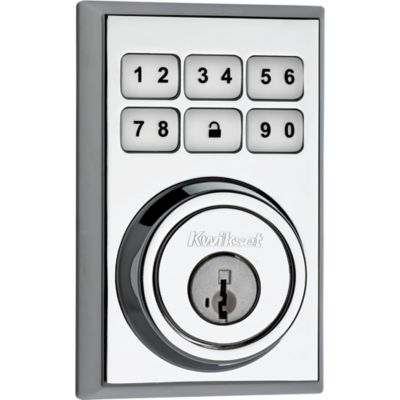

914 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
4 Finishes

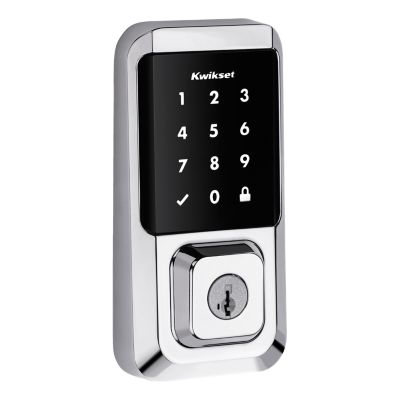

Halo Touchscreen Wi-Fi Enabled Smart Lock
4 Finishes

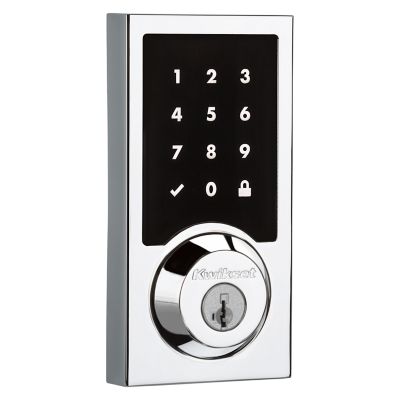

916 Smartcode Contemporary Electronic Deadbolt with Zigbee Technology
4 Finishes
914 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology
4 Finishes
918 HomeConnect Contemporary Electronic Deadbolt with Z-Wave Technology
Specifications
All Measurements are in Inches
-
Kwikset FamilyHome Connect
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeGrade 2
-
UL Time Rating20 min
-
Min Door Thickness1-3/8
-
Max Door Thickness2
-

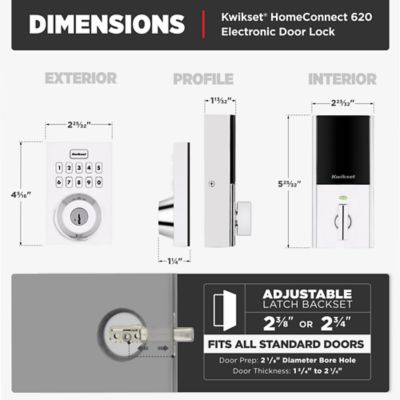

Assembled Height4-5/16
-
Assembled Width2-25/32
-
Assembled Length1-1/4
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
-
Voice Control EnabledAlexa via Z-Wave ; Alexa via Proprietary Bridge/Gateway ; Google Assistant via Z-Wave ; Google Assistant via Proprietary Bridge/Gateway
-
Lock TechnologyZ-Wave700LR
-
Hub RequiredHub required for remote access
-
Electronic Works WithAlexa ; Google Home ; Google Assistant ; Ring ; SmartThings ; Wink ; Vera
-
# Of Codes250
-
Battery Type Required4 AA, included
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
