260 SmartCode Contemporary Electronic Deadbolt

260 CNT 514

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.


Man speaking to his Amazon Alexa

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Comes with 2 keys
  • Deadbolt Latch has 2 interchangeable faceplates - round corner and square corner
  • ANSI/BHMA grade 2 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 inch deadbolt throw

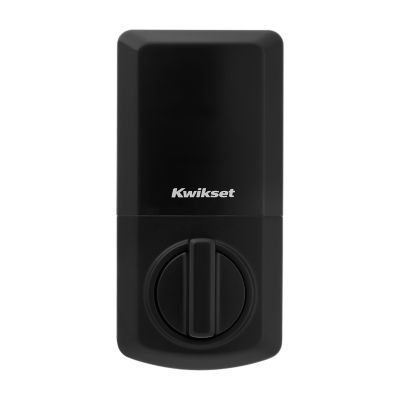

  • Locking mechanism functions with turn piece on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Keypad stays lit for 10 seconds after inactivity
  • Multiple pre-defined Auto-locking settings available
  • Easily installs in minutes with just a screwdriver

Similar Products

913 Smartcode Contemporary Electronic Deadbolt

4 Finishes

913 Smartcode Contemporary Electronic Deadbolt
915 Smartcode Contemporary Electronic Deadbolt

4 Finishes

915 Smartcode Contemporary Electronic Deadbolt
917 SmartCode Electronic Halifax Lever

3 Finishes

917 SmartCode Electronic Halifax Lever
270 SmartCode Contemporary Electronic Deadbolt

2 Finishes

270 SmartCode Contemporary Electronic Deadbolt
Signature Series
260 Smartcode Contemporary Electronic Deadbolt with Halifax Lever

2 Finishes

260 Smartcode Contemporary Electronic Deadbolt with Halifax Lever
Signature Series
Powerbolt 240 Contemporary Keypad Electronic Lock

2 Finishes

Powerbolt 240 Contemporary Keypad Electronic Lock

Specifications

All Measurements are in Inches

  • Kwikset Family
    SmartCode Deadbolts Touchpad
  • Product Type
    Deadbolt
  • Style
    Contemporary
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 2
  • UL Time Rating
    20 min
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    4-9/16
  • Assembled Width
    2-3/4
  • Assembled Length
    1
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only
  • # Of Codes
    50
  • Battery Type Required
    4 AA, purchase separately

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
