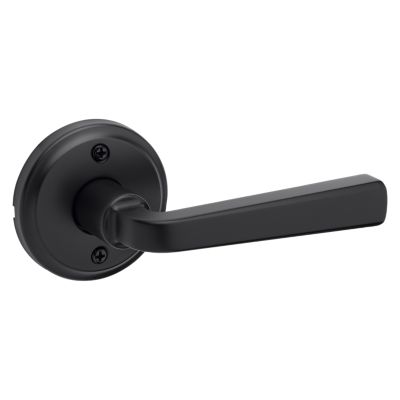

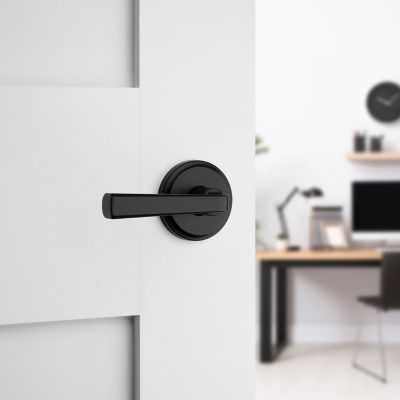

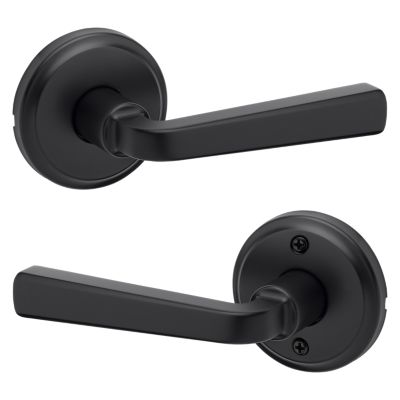

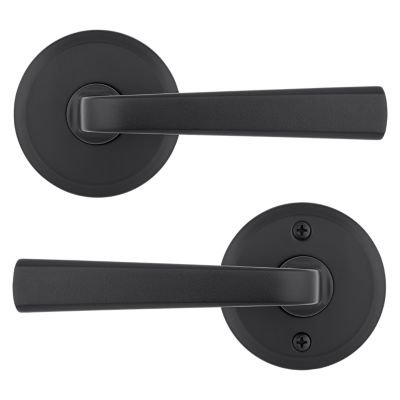

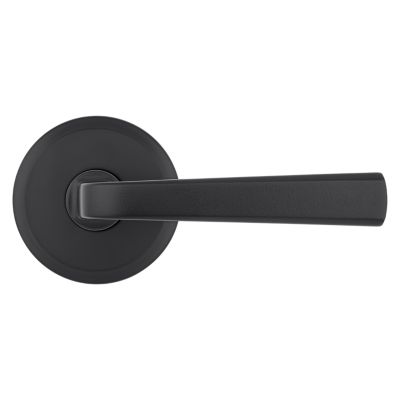

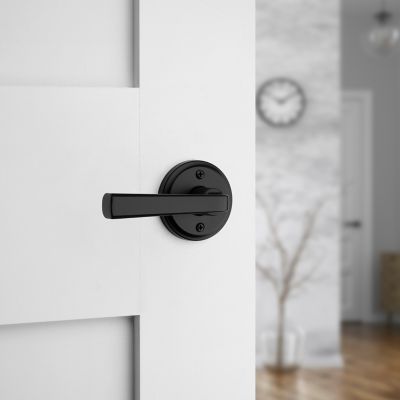

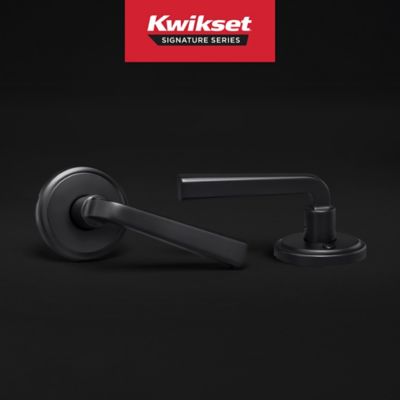

Trafford Lever - Hall/Closet
720TDL 514
Complete the Look
Features
- Non-Locking Passage: Use on doors requiring no locking method, latch allows door to be opened or closed, recommended for closets and other doors where security is not needed

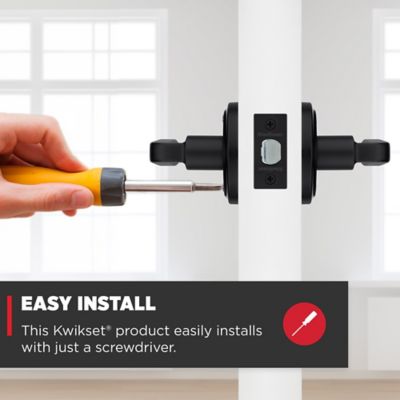

- Easy Install: Do it yourself, installs in minutes with just a screwdriver, all the hardware you need is included for a hassle-free installation, detailed directions provided
- Fits Standard Doors: Fits standard size doors 1-3/8" to 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation

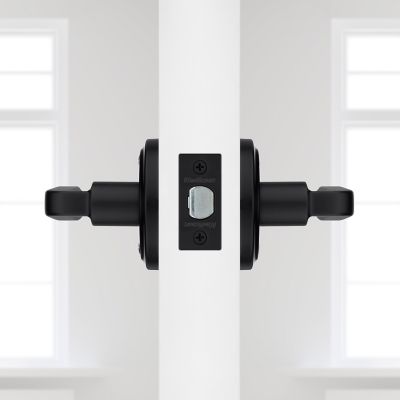

- Adjustable Latch: By sliding the adjustment pin during installation, the latch backset can be adjusted to either 2-3/8" or 2-3/4" in order to fit all standard door preparations

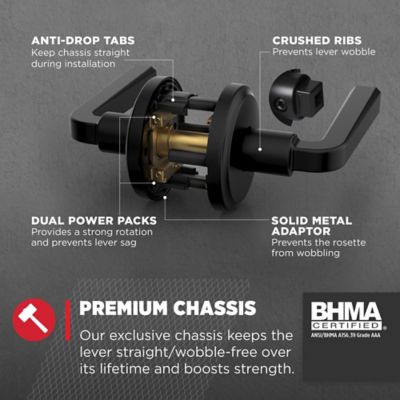

- Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home

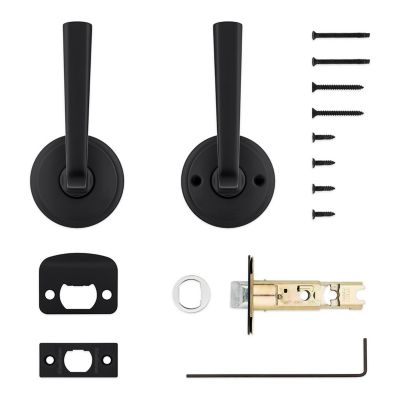

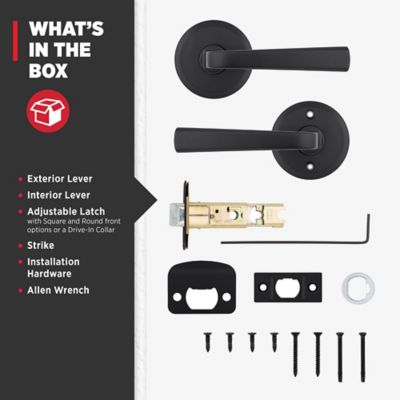

- Box Includes: Box Includes passage lever, Adjustable Latch with round and square front options or drive-in collar, round corner strike, designer rosette, screws and Allen wrench
- Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details

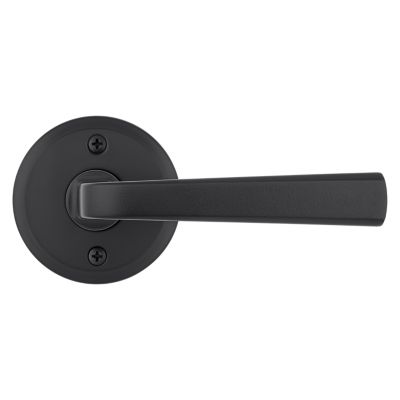

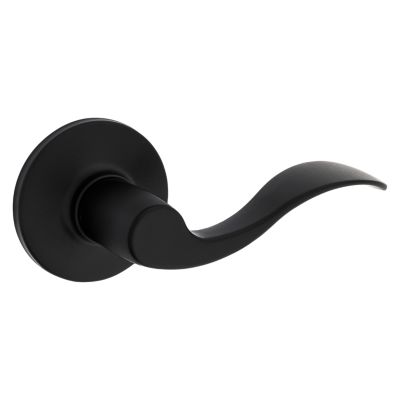

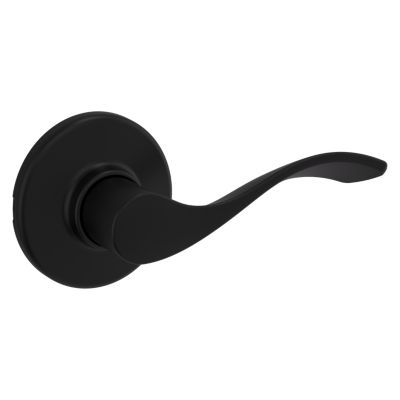

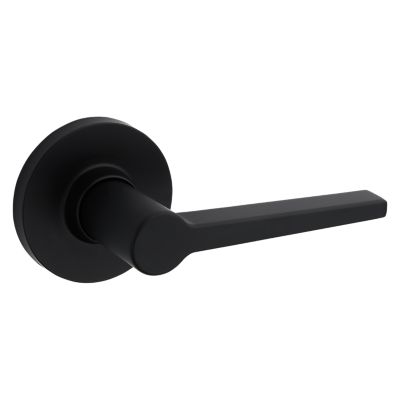

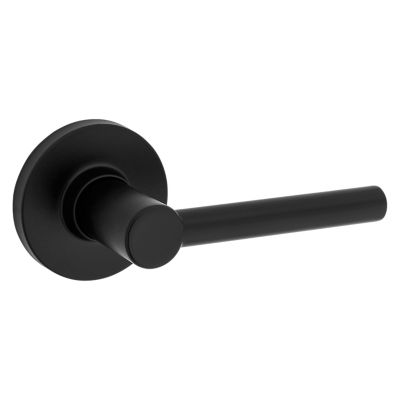

Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyTrafford
-
Product TypeLever
-

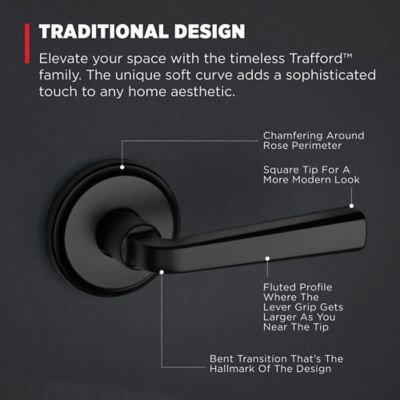

StyleTraditional
-
Entry Has SmartKey?No
-
Has Microban?Yes
-
ANSI GradeAAA
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-

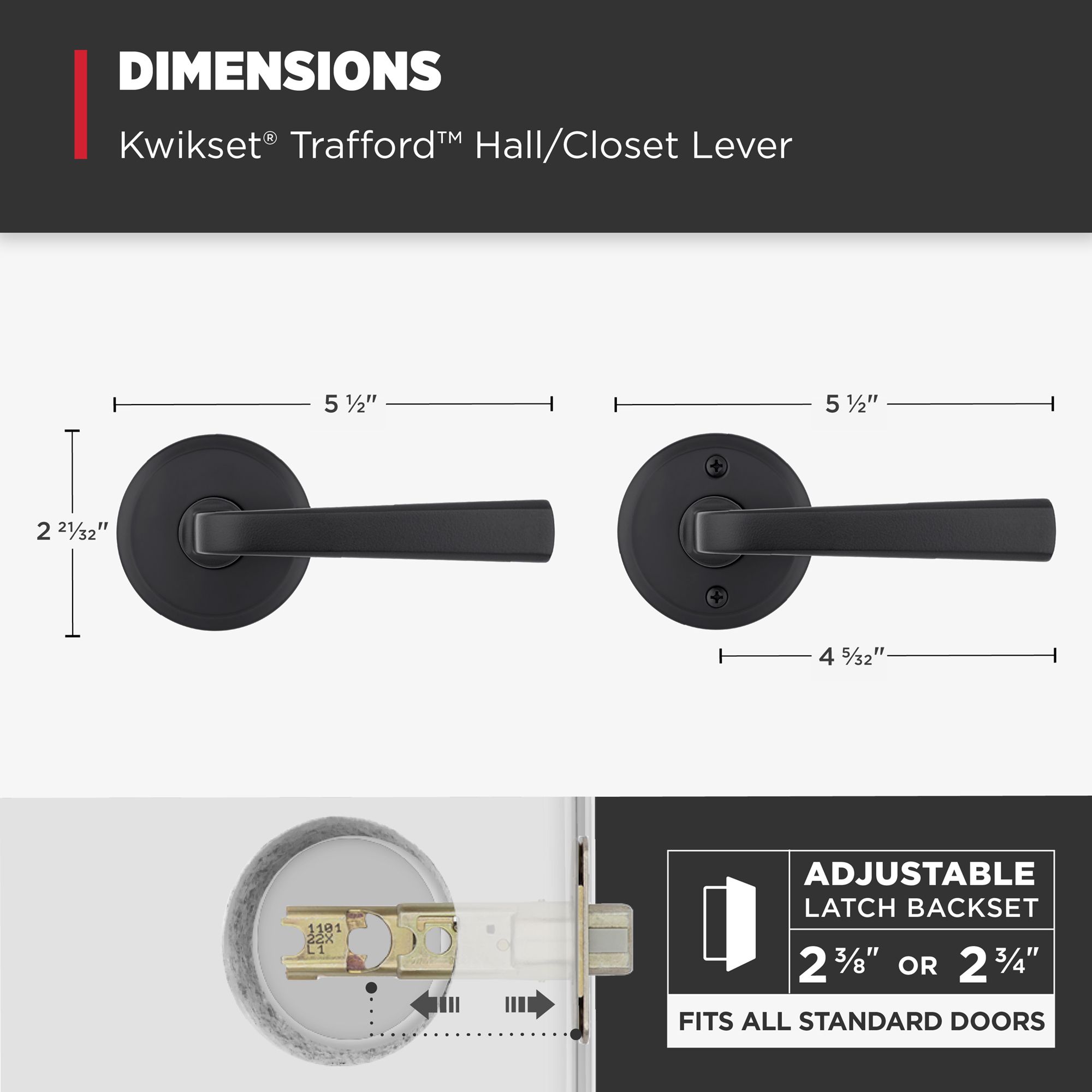

Assembled Height2-21/32
-
Assembled Width5-1/2
-
Assembled Length2-19/32
-

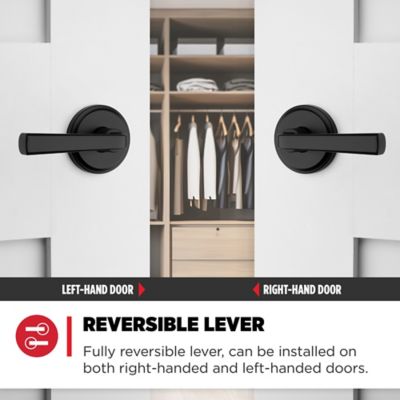

Lever HandlingReversible
-
Cross Bore2-1/8"
-
ADA CompliantYes
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
