Home / Products / Levers / Sedona Lever (Arched) - Right Handed - Pull Only

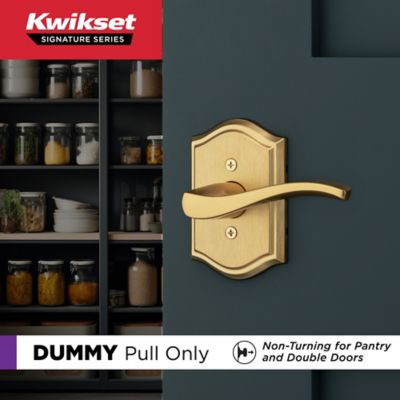

Sedona Lever (Arched) - Right Handed - Pull Only

788SEL ART RH 4

Features

  • Inactive Dummy: Use on interior doors with no latch or lock, knob is non-turning. Recommended for double doors or any other doors where only a pull is needed
  • Easy Install: DIY install in minutes with just a screwdriver and Allen wrench, all hardware and directions provided. Fits interior doors without bore holes, such as the inactive side of a French door
  • Box Includes: Non-turning knob, installation hardware and Allen wrench
  • Capetown Arch Trim: The door knob’s elegantly arched design adds a timeless, charming look to any space, ideal for traditional and historic homes
  • Oversized Trim Design: The oversized trim adds a bold, elevated look while helping cover paint marks and surface imperfections left behind after removing old door hardware
  • Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
  • Certified Trusted Quality: Security, Durability and Finish are Grade AAA BHMA certified, designed for the highest level of security and the toughest environments with frequent use
  • Ideal for homeowners, renters, landlords, property managers, contractors, DIYers, and pros: Fits single-family homes, apartments, condos, student housing, short-term
  • rentals and vacation homes
  • Perfect for remodels, upgrades, new construction, rental turnovers and move-ins: Installs easily for quick updates, enhances door style, delivers reliable performance and everyday convenience

Specifications

All Measurements are in Inches

  • Kwikset Family
    Sedona
  • Product Type
    Lever
  • Style
    Traditional
  • SmartKey
    No
  • Has Microban?
    No
  • ANSI Grade
    Not Rated
  • UL Time Rating
    Not rated

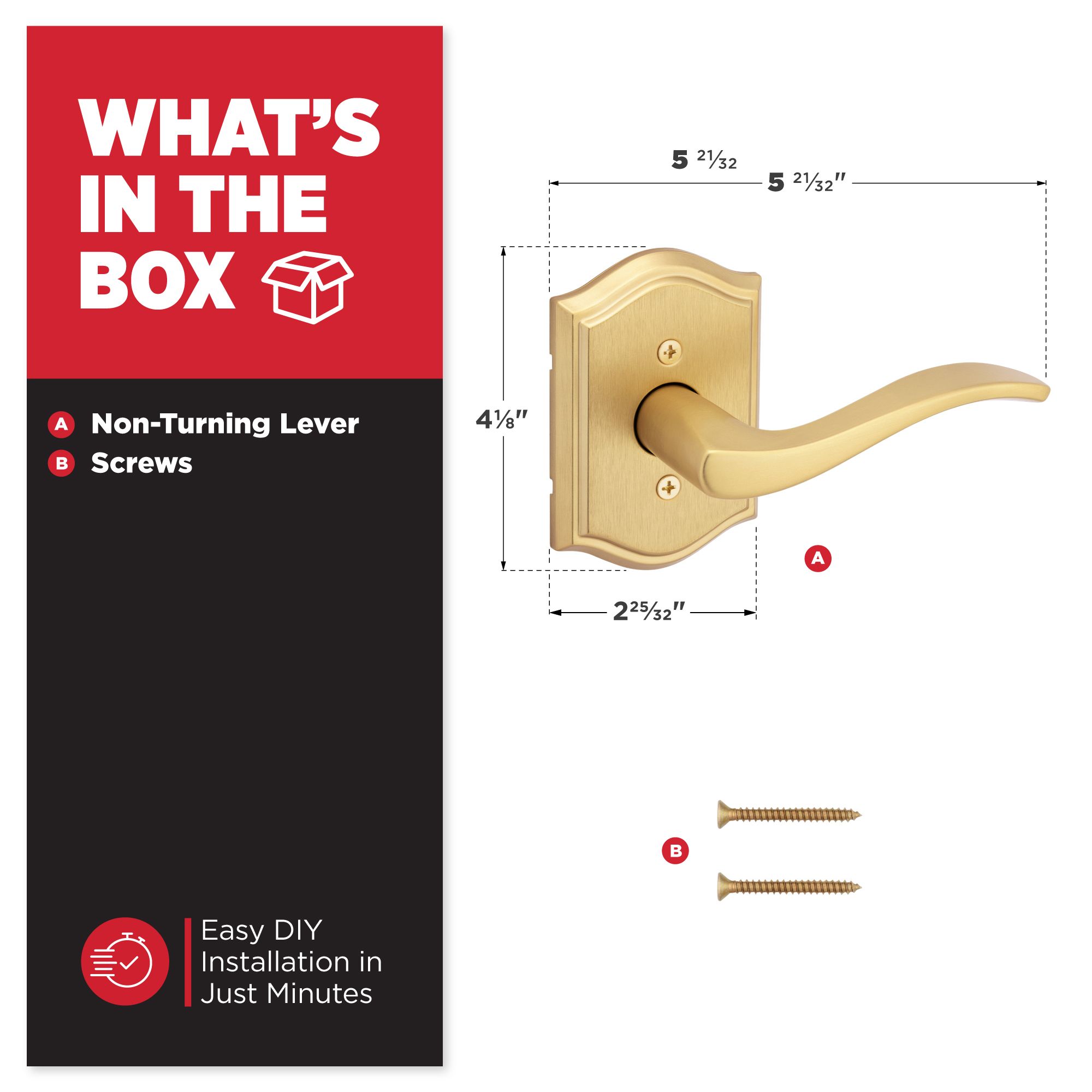

  • Assembled Height
    4-1/8
  • Assembled Width
    2-25/32
  • Assembled Length
    7-1/32
  • Lever Handling
    Right
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • Body Material
    Metal

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
