Sedona Lever (Arched) - Keyed - featuring SmartKey

740SEL ART 4 SMT

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.

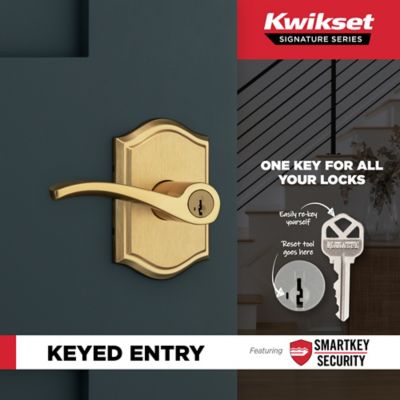

Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Keyed Entry: Use on doors where extra security is needed, turn piece interior locking, exterior locking using a key. Recommended for exterior-facing doors
  • Easy Install: DIY install in minutes with just a screwdriver and Allen wrench, all hardware/directions provided. Fits standard doors 1-3/8" to 1-3/4" thick, latch backset adjusts
  • to 2-3/8" or 2-3/4"
  • SmartKey Security: Kwikset’s SmartKey Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • Capetown Arch Trim: The door knob’s elegantly arched design adds a timeless, charming look to any space, ideal for traditional and historic homes
  • Premium Chassis: Kwikset’s exclusive chassis uses dual compression springs, keeping the knob wobble-free over the lifetime of the product and enhancing its strength and rotational
  • feel
  • Oversized Trim Design: The oversized trim adds a bold, elevated look while helping cover paint marks and surface imperfections left behind after removing old door hardware
  • Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
  • Certified Trusted Quality: Security, Durability and Finish are Grade AAA BHMA certified, designed for the highest level of security and the toughest environments with frequent use
  • Ideal for homeowners, renters, landlords, property managers, contractors, DIYers, and pros: Fits single-family homes, apartments, condos, student housing, short-term
  • rentals and vacation homes
  • Perfect for remodels, upgrades, new construction, rental turnovers and move-ins: Installs easily for quick updates, enhances door style, delivers reliable performance and everyday convenience

Specifications

All Measurements are in Inches

  • Kwikset Family
    Sedona
  • Product Type
    Lever
  • Style
    Traditional
  • SmartKey
    Yes
  • Has Microban?
    No
  • ANSI Grade
    AAA (Grade 2)
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    4-1/8
  • Assembled Width
    2-25/32
  • Assembled Length
    7-1/32
  • Lever Handling
    Reversible
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • Body Material
    Metal
  • Key Quantity Per Pack
    2

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
