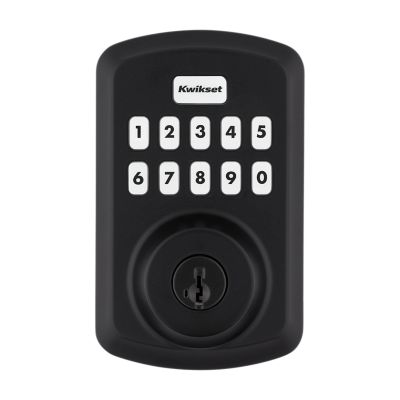

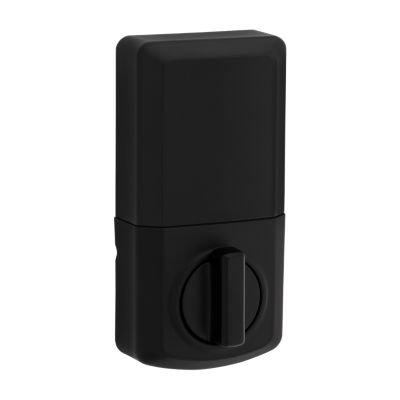

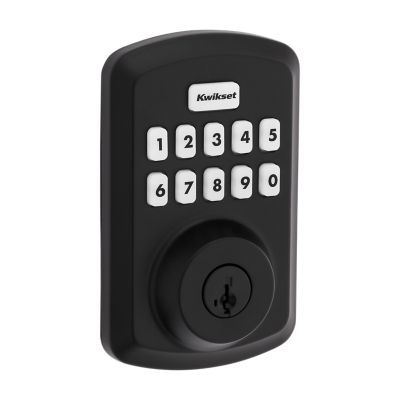

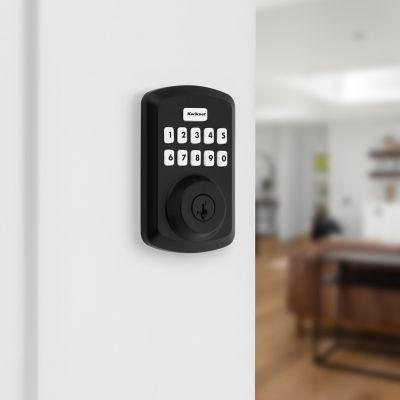

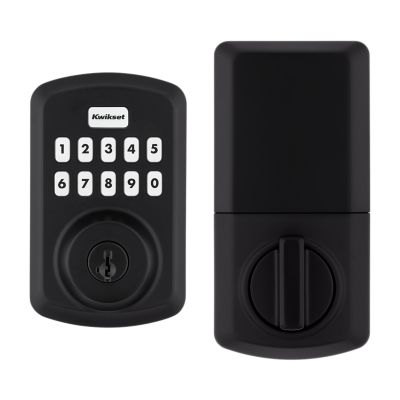

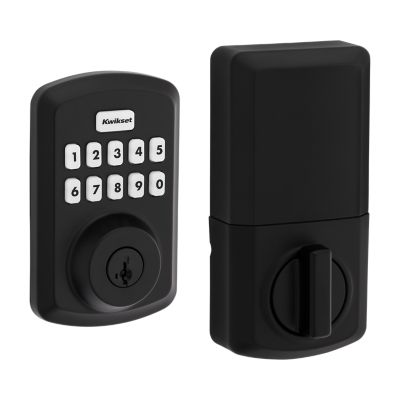

Powerbolt 250 Transitional Keypad Electronic Lock

9250 TRS 514 SMT

Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Features

  • KEYLESS ENTRY: Makes coming and going secure and convenient.
  • EASY CODE MANAGEMENT: 25 user codes and 5 one-time user codes.
  • AUTO LOCK: Peace of mind with customizable, automatic locking.
  • INTRUSION ALERT: 3 wrong codes disable keypad and sound alarm.
  • EASY LOW LIGHT CODE ENTRY: Bright LED light up keypad.
  • VACATION MODE: Disable the keypad when you're out of town.
  • FEATURING SMARTKEY SECURITY: Re-key the lock yourself in seconds.
  • 12-MONTH BATTERY LIFE: 4x AA alkaline batteries (not included).
  • EASY INSTALL and BILT App: Easily install with screwdriver.
  • CERTIFIED SECURITY: BHMA Grade 3 Security, Durability and Finish.
  • LIMITED WARRANTY: Lifetime Mechanical/Finish, 1 Year Electronics.

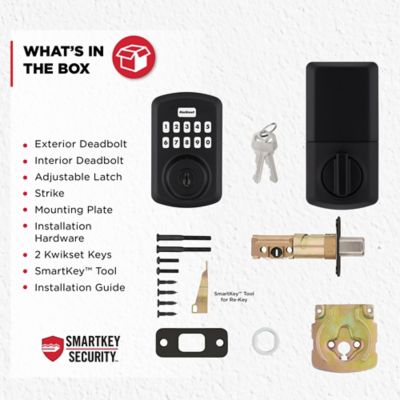

  • Includes lock, latch, strike, hardware, 2 keys and instructions.

Specifications

All Measurements are in Inches

  • Kwikset Family
    Powerbolt 9250
  • Product Type
    Deadbolt
  • Style
    Transitional
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 3
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4

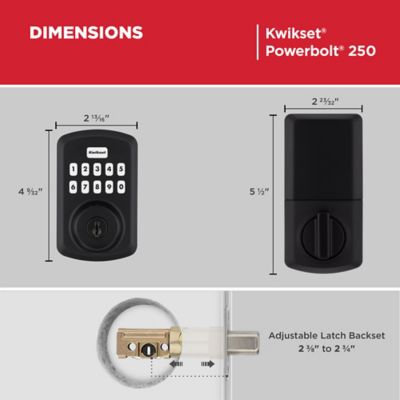

  • Assembled Height
    4-19/32
  • Assembled Width
    2-13/16
  • Assembled Length
    31/32
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No
  • Hub Required
    Standalone product, No hub required
  • # Of Codes
    25
  • Battery Type Required
    4 AA, purchase separately

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
