Home / Products / 93350 - Square Pocket Door Lock

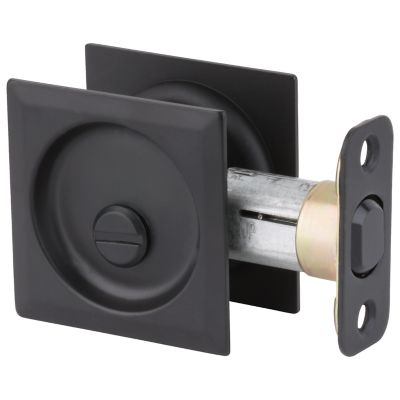

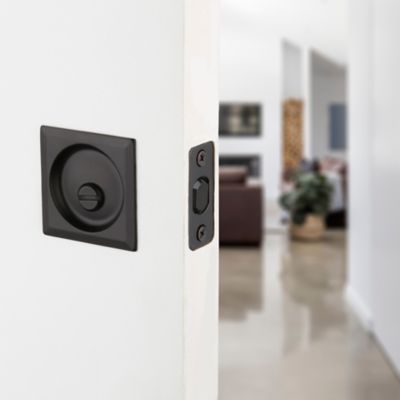

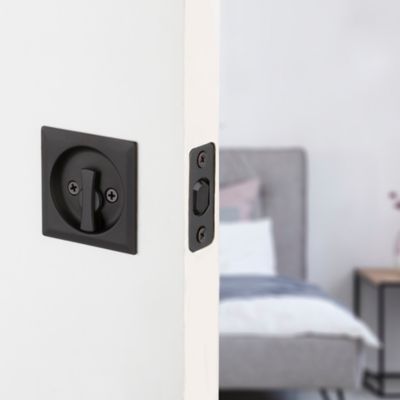

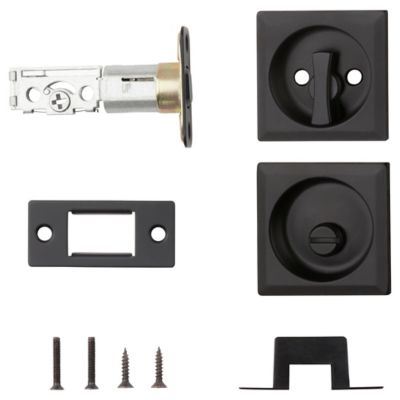

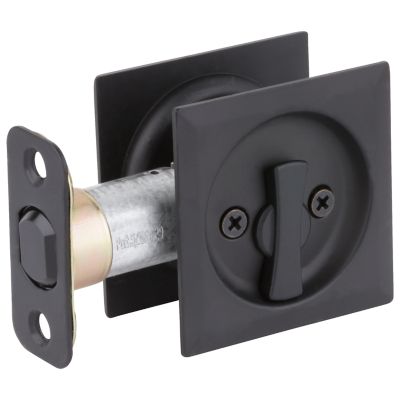

93350 - Square Pocket Door Lock

93350 514 SQT

Features

  • Latch has round corner faceplate
  • Latch has 2 3/8 in. backset
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • For use on interior doors where a privacy locking function is required, such as a bedroom or bathroom
  • Lifetime mechanical and finish warranty

Similar Products

93340 - Square Pocket Door Lock

5 Finishes

93340 - Square Pocket Door Lock
Kwikset Series

Specifications

All Measurements are in Inches

  • Product Type
    Pocket Lock
  • Style
    Contemporary
  • Has Microban?
    No
  • ANSI Grade
    Not Rated
  • Min Door Thickness
    1-3/4
  • Assembled Height
    2-7/16
  • Assembled Width
    2-7/16
  • Assembled Length
    15/32
  • Latch Backset Size
    2-3/8
  • Cross Bore
    2-1/8"

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
