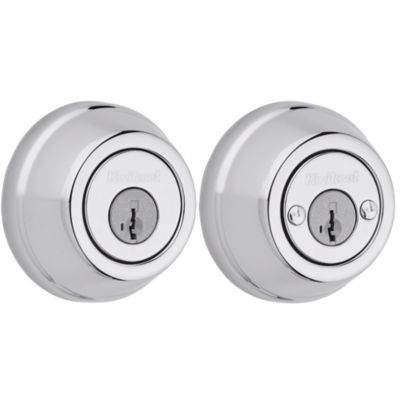

785 Deadbolt - Keyed Both Sides - featuring SmartKey

785 26 SMT

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Keyed Deadbolt: Use on doors requiring a high level of security, turn piece interior locking, exterior locking using a key. Recommended for exterior-facing doors
  • SmartKey Security: Kwikset’s SmartKey Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • 2-Point Locking Deadbolt: For exterior front doors, comes with exterior and interior Keyed Deadbolt, 2 keys; key operated from outside and inside
  • Certified Trusted Quality: Security, Durability and Finish are Grade AAA BHMA certified, designed for the highest level of security and the toughest environments with frequent use (deadbolt only)
  • Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
  • Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details

Similar Products

785 Deadbolt - Keyed Both Sides - with Pin & Tumbler

9 Finishes

785 Deadbolt - Keyed Both Sides - with Pin & Tumbler
Signature Series
159 Square Deadbolt - Keyed Both Sides - featuring SmartKey

5 Finishes

159 Square Deadbolt - Keyed Both Sides - featuring SmartKey
Signature Series
159 Round Deadbolt - Keyed Both Sides - featuring SmartKey

5 Finishes

159 Round Deadbolt - Keyed Both Sides - featuring SmartKey
Signature Series

Specifications

All Measurements are in Inches

  • Kwikset Family
    780 Deadbolt Series
  • Product Type
    Deadbolt
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    No
  • ANSI Grade
    Grade 2
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Assembled Length
    1-1/8
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
