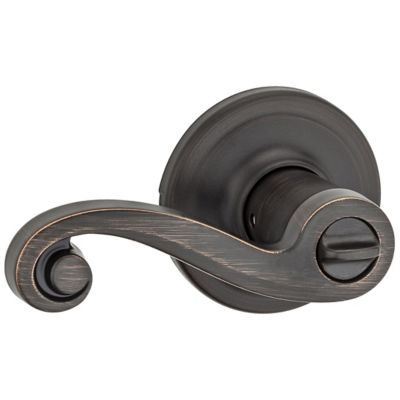

Lido Keyed Entry Lever

Model: 740LL 11P SMT

Function: Keyed Entry Lever

Lido Keyed Entry Lever in Venetian Bronze is rated 4.3 out of 5 by 77.
  • y_2019, m_1, d_18, h_24
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
  • cp_1, bvpage1
  • co_hasreviews, tv_4, tr_73
  • loc_en_US, sid_740LL-11P-SMT, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_kwikset
  • bvseo_sdk, net_sdk, 3.2.0.0
  • CLOUD, getAggregateRating, 15ms
  • REVIEWS, PRODUCT
This proven leader retains the exquisitely elegant Lido scroll, and makes a stylish design statement.
  • Features adjustable latch to fit all standard door preparations
  • ANSI/BHMA Grade 2 Security
  • Concealed screws on the interior and exterior lever
  • Fully reversible Lever – Fits both right handed and left handed doors
  • Lifetime mechanical and finish warranty
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway
  • SmartKey cylinders feature a stainless steel side locking bar, racks and pins for increased strength and security
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin & tumbler locks.
  • Do not use prints made from this website to mark distances.
    Due to individual printers, dimensions on installation instructions may not print at an accurate scale.

  • Kwikset products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Kwikset you have selected the best quality product, backed by the best customer service available.

    This product comes with a lifetime mechanical and finish warranty to the original residential user of Kwikset against defects in material and workmanship as long as the original user occupies the residential premises upon which the product was originally installed. One year electronic warranty. This warranty DOES NOT COVER scratches; abrasions; deterioration due to the use of paints, solvents or other chemicals; abuse; misuse; or product(s) used in commercial applications. Upon return of a defective product to Kwikset Corporation, Kwikset may repair or replace the product or refund the purchase price. Kwikset is not liable for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state. If a mechanical or finish defect occurs, please call 1-800-327-LOCK (5625) in the U.S. and Canada or return it to Kwikset Corporation, Consumer Services, 19701 Da Vinci, Lake Forest, CA 92610. For customers outside of the U.S. and Canada, claims under this warranty must be made only to either the place of purchase or to the listed importer.

    Consumer Services
    19701 Da Vinci
    Lake Forest, CA 92610
    1-800-327-LOCK
  • Some of our product families have available specialty functions. The specialty products listed below can be ordered through our Wholesale or Distribution Partners. Please refer to our printed catalog for complete specialty products availability.

    Model Number Description Function Name
    750LL 11P SMT Lido Vestibule Lever in Venetian Bronze Storeroom/Vestibule Lever
    725LL 11P Lido Hall/Closet Lever UL in Venetian Bronze Passage/Hall/Closet Lever UL
    735LL 11P Lido Bed/Bath Lever UL in Venetian Bronze Privacy/Bed/Bath Lever UL
    745LL 11P SMT Lido Keyed Entry Lever UL in Venetian Bronze Keyed Entry Lever UL
    755LL 11P SMT Lido Vestibule Lever UL in Venetian Bronze Storeroom/Vestibule Lever UL
    741LL 11P SMT Lido Free Interior, Keyed Entry Lever in Venetian Bronze Keyed Entry Lever, Free Interior
    746LL 11P SMT Lido Free Interior, Keyed Entry Lever UL in Venetian Bronze Keyed Entry Lever, Free Interior UL
  • Rated 5 out of 5 by from Lido lever finish and function I put lido levers in my house a few years ago finish failed a bit and latch stuck warrenty was wonderful replaced handle works w ondeeful looks wonderful
    Date published: 2019-01-03
    Rated 5 out of 5 by from The last of 11 Lido lever door latches replaced I love the Kwikset locks and interior door latches. This was the last of five entry door lever sets to install. It was a simple task to get all set for the same key. Similarly, reversing locks was easy. Thank you Kwikset system!
    Date published: 2018-12-31
    Rated 5 out of 5 by from My first handle lasted 3+ years, froze up tight and won’t pick anymore. Called you folks and you had an exact replacement to me within 6 days even though you indicated it would be 4-6 weeks for arrival. So pleased with service needless to say. Thank you!
    Date published: 2018-12-08
    Rated 5 out of 5 by from Nice looking lever easy to use; don't have to grip it but can push it down to open with a hand full of groceries, etc.
    Date published: 2018-11-13
    Rated 5 out of 5 by from Excellent warranty customer service I have 6 entry locks and I live in a salt air environment. The finishes corroded and some lock rusted on the inside. All I needed to do was take pictures, email them and I recieved new locks in the mail. Very pleased with quick set warranty service and will continue to use kwikset for the long term :)
    Date published: 2018-10-06
    Rated 5 out of 5 by from Beautiful My old one tarnished on the outside and was replaced. I love Kwikset and its the only one I will buy.
    Date published: 2018-09-04
    Rated 5 out of 5 by from Quality Purchased over five years ago and had a small problem with the key stop working. Replacement was sent without any issues.
    Date published: 2018-08-23
    Rated 5 out of 5 by from Good design and function My wife, a residential contractor, and I built our home at Pensacola Beach in 1994. As my wife always has, we used Kwikset products for our locks and handles. After 20+ years in this harsh environment and after several hurricanes the finish of the exterior items deteriorated. There was also some rusting of of the exterior mechanisms which was no surprise considering the environment where stainless steel rusts. We contacted customer support who promptly acknowledged the issues and sent replacements of all affected items. We could not be happier with the response of support and will continue to use Kwikset products.
    Date published: 2018-08-17
    • y_2019, m_1, d_18, h_24
    • bvseo_bulk, prod_bvrr, vn_bulk_2.0.9
    • cp_1, bvpage1
    • co_hasreviews, tv_4, tr_73
    • loc_en_US, sid_740LL-11P-SMT, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_kwikset
    • bvseo_sdk, net_sdk, 3.2.0.0
    • CLOUD, getReviews, 0ms
    • REVIEWS, PRODUCT
  • I purchased a model 740LL 3 SMT entry lever. How do I reverse the levers? When installed, the levers are upside down.

    Asked by: Nolan
    Hello Nolan, To reverse the handing of your levers, insert a flat head screw driver into the lever catch. Remove both levers away from the chassis. Exchange each side with the other. Snap each lever on the corresponding side of the chassis. For assistance in parts for your lockset and warranty support please contact Kwikset Consumer Service at 1-800-327-5625. Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2019-01-11

    Hello, I have this lock set and the outside handle just spins. I put an allen wrench into the hole on the handle and through the shaft to tighten up the handle but that did not work. What am I doing wrong or is something broken?

    Asked by: BetteAnn
    Hello BetteAnn, For assistance in parts for your lockset and warranty support please contact Kwikset Consumer Service at 1-800-327-5625. Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2019-01-07

    I have a Lido Lock like this but the lock is a left handle for a set of French doors. Will this lock work, or is there a different part number to order for a left keyed lock?

    Asked by: Sukhveen
    Hello Sukhveen, The interior pack is model # 966 and the desired lever and finish. These items may need to be special ordered if you are unable to find them online. For the most up to date pricing and availability please visit your local home improvement special order counter or our Where to Buy page: http://www.kwikset.com/where-to-buy.aspx Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2019-01-04

    Hello, I just received some custom doors today with a 2" thickness size (5cm), will this handler fit good into it? I wonder what is the minimum and maximum adjustment for the handler. Thanks.

    Asked by: enygma
    Hello enygma, This model will accommodate a maximum door thickness of 2 1/4". You will need to purchase the thick door kit screws #81706. For the most up to date pricing and availability please visit your local home improvement special order counter or our Where to Buy page: http://www.kwikset.com/where-to-buy.aspx Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2018-12-26

    What is the difference between the Lido 740LL and 750LL, if any?

    Asked by: trish22
    Hello trish22, The 740LL is the Keyed Entry lever where both levers are locked/unlocked by key outside and turn or push button inside. The 750LL is a Storeroom/Vestibule where the outside is unlocked only while the key is turned and the inside is always free. Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2018-12-20

    I have what looks like a Lido handle, but the set screw has gone missing. what size of set screw should I be looking for?

    Asked by: handleless
    Hello handleless, The only way the set screw could be missing is if you physically removed it with your 3/32 Allen wrench. To verify if the set screw is, in fact, missing, with the lever removed from the shaft, please insert your 3/32 Allen wrench into the access hole and if it comes out of the other end, the set screw is missing. But if it does not come out of the other end, then the set screw is still inside the shaft. From there you would just place the lever back on to the shaft, making sure the access hole in the lever itself is facing the door hinges. Then insert your 3/32 Allen wrench and tighten the set screw making sure the lever is nice and snug. For assistance in parts for your lockset and warranty support please contact Kwikset Consumer Service at 1-800-327-5625. Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2018-12-17

    My keys will lock the door, but the interior "Finger twisting" mechanism will not turn to the lock position with out the key.

    Asked by: Geeeoff
    Hello Geeeoff, You will need to use a 3/32 Allen wrench and tighten the set screw on the exterior and interior levers. This will ensure proper alignment of your product. For assistance in parts for your lockset and warranty support please contact Kwikset Consumer Service at 1-800-327-5625. Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2018-12-04

    I have this door knob/lever and cannot loosen the interior set screw in order to remove the interior handle.  Any ideas/solutions?

    Asked by: The Chaster
    Hello The Chaster, To remove the lever, you will need to use either a 3/32 Allen wrench or a 5/64 to loosen the set screw. For assistance in parts for your lockset and warranty support please contact Kwikset Consumer Service at 1-800-327-5625. Sincerely, Kwikset Support Team
    Answered by: Kwikset Support Team
    Date published: 2018-11-06
