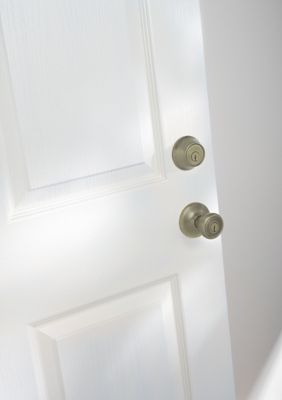

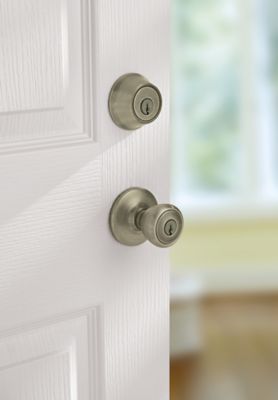

Tylo Security Set - Deadbolt Keyed One Side - with Pin & Tumbler

690T 5

Features

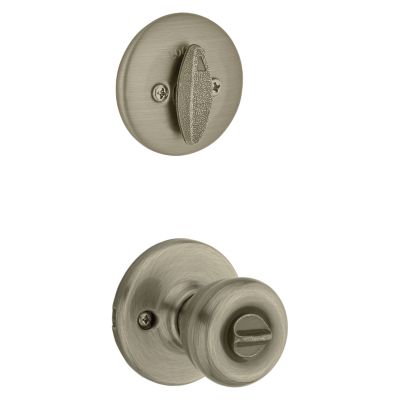

  • Keyed Deadbolt: Use on doors requiring a high level of security, turn piece interior locking, exterior locking using a key. Recommended for exterior-facing doors
  • Smartkey Security: Kwikset’s SmartKey® Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • Easy Install: Do it yourself, installs in minutes with just a screwdriver, all the hardware you need is included for a hassle-free installation, detailed directions provided
  • Fits Standard Doors: Fits standard size doors 1-3/8" to 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" with just a twist during installation
  • Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home
  • Box Includes: Box includes deadbolt, adjustable latches with round and square front options or drive-in collar, round corner strikes, SmartKey® tool, 2 Kwikset keys, screws and Allen wrench
  • Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    Tylo
  • Product Type
    Knob
  • Style
    Traditional
  • Entry Has SmartKey?
    No
  • Has Microban?
    Yes
  • ANSI Grade
    Grade 3
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Assembled Length
    2-1/2
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
