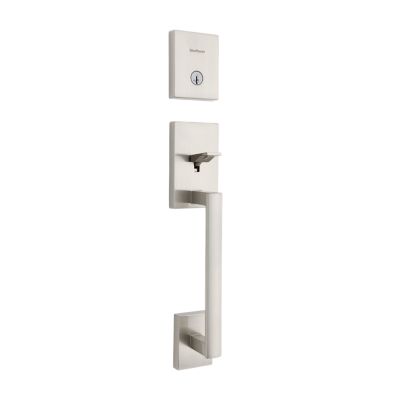

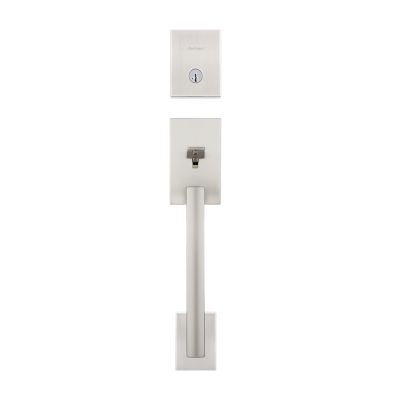

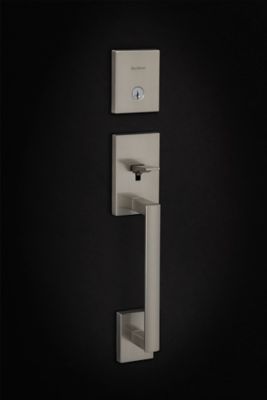

San Clemente Handleset with Mirada Lever - Deadbolt Keyed One Side - featuring SmartKey

818SCEXMAL 15 SMT

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

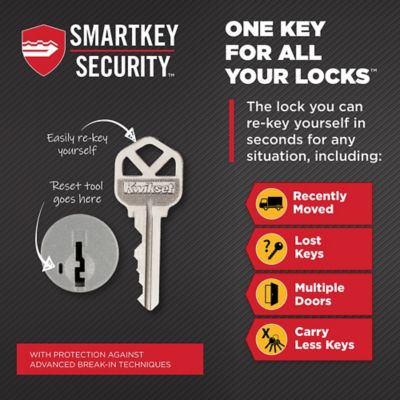

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

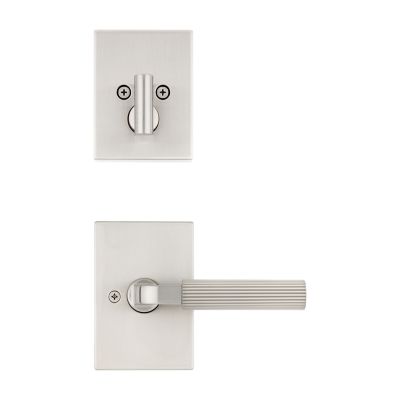

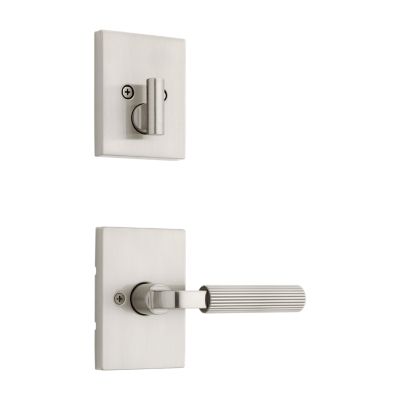

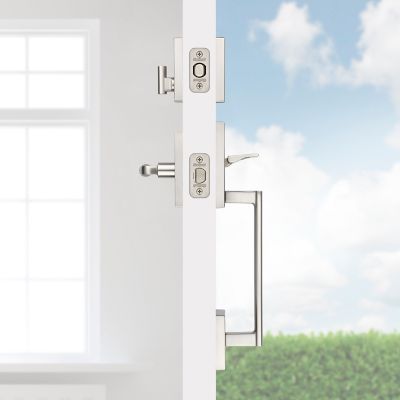

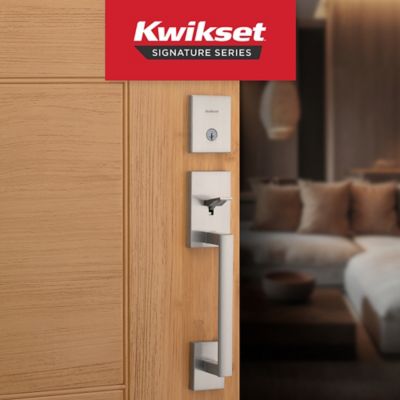

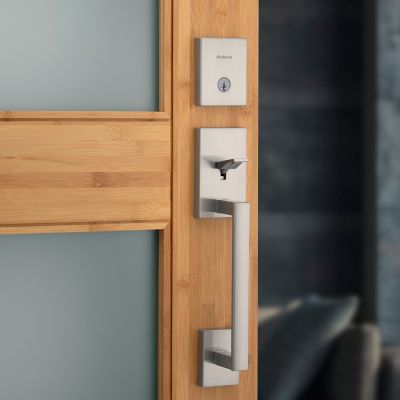

  • HANDLESET WITH DEADBOLT: Use on exterior front doors with two bore holes, comes with interior lever and locking deadbolt turn piece, key operated from outside
  • Kwikset® SIGNATURE SERIES™: Get designer style and trusted security with this Kwikset® Signature Series™ product, enjoy quality construction and multiple finishes
  • SMARTKEY SECURITY®: Kwikset®’s SmartKey Security® technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds

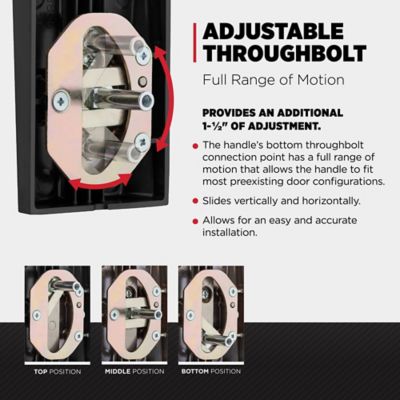

  • FULLY ADJUSTABLE THROUGHBOLT: The handle’s bottom throughbolt connection point has a full range of motion that allows the handle to fit most preexisting door configurations

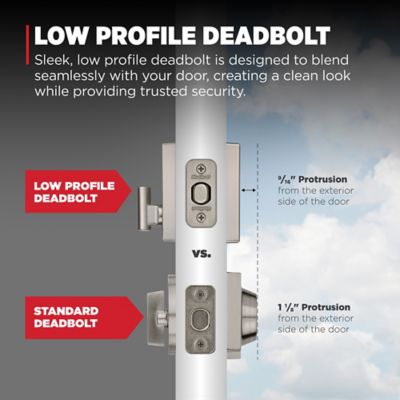

  • LOW PROFILE DEADBOLT: Sleek, low profile deadbolt is designed to blend seamlessly with your door, creating a clean look while providing the same trusted security as a standard deadbolt
  • CERTIFIED TRUSTED QUALITY: Security, Durability and Finish are Grade AAA BHMA certified, designed for the highest level of security and the toughest environments with frequent use
  • WARRANTY PROTECTION: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset® warranty for more details

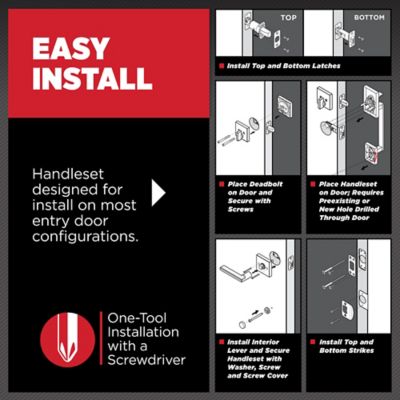

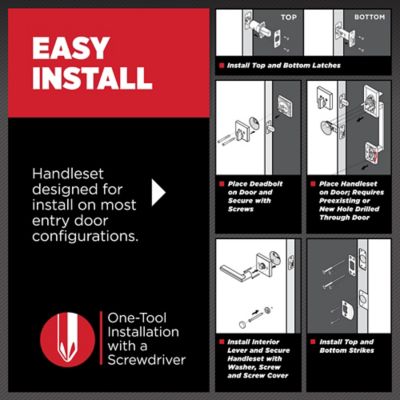

  • EASY INSTALL: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided

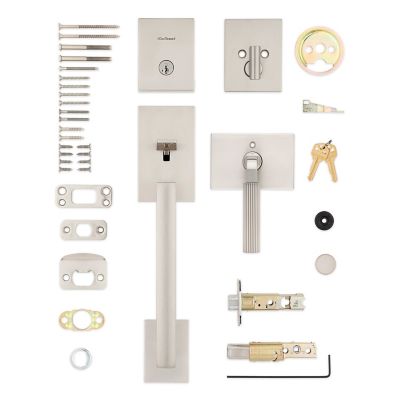

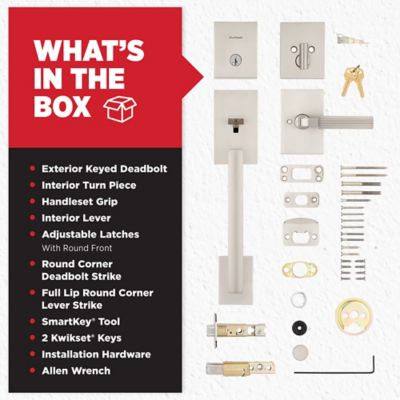

  • BOX INCLUDES: Exterior keyed deadbolt, handleset, interior turn piece, interior lever, adjustable latches, strikes, SmartKey® tool, 2 Kwikset® keys, installation hardware and Allen wrench
  • FITS STANDARD DOORS: Fits standard size doors 1-3/4" thick, latch backset adjusts to either 2- 3/8" or 2-3/4" by sliding the adjustment pin during installation
  • Microban® PROTECTION: Kwikset®’s door hardware is treated with Microban®, this offers powerful product protection that is 99.9% cleaner than an unprotected surface

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    San Clemente
  • Product Type
    Handleset
  • Style
    Modern
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    Yes
  • ANSI Grade
    Handleset Grade 1
  • UL Time Rating
    Not rated
  • Min Door Thickness
    1-3/4
  • Max Door Thickness
    2

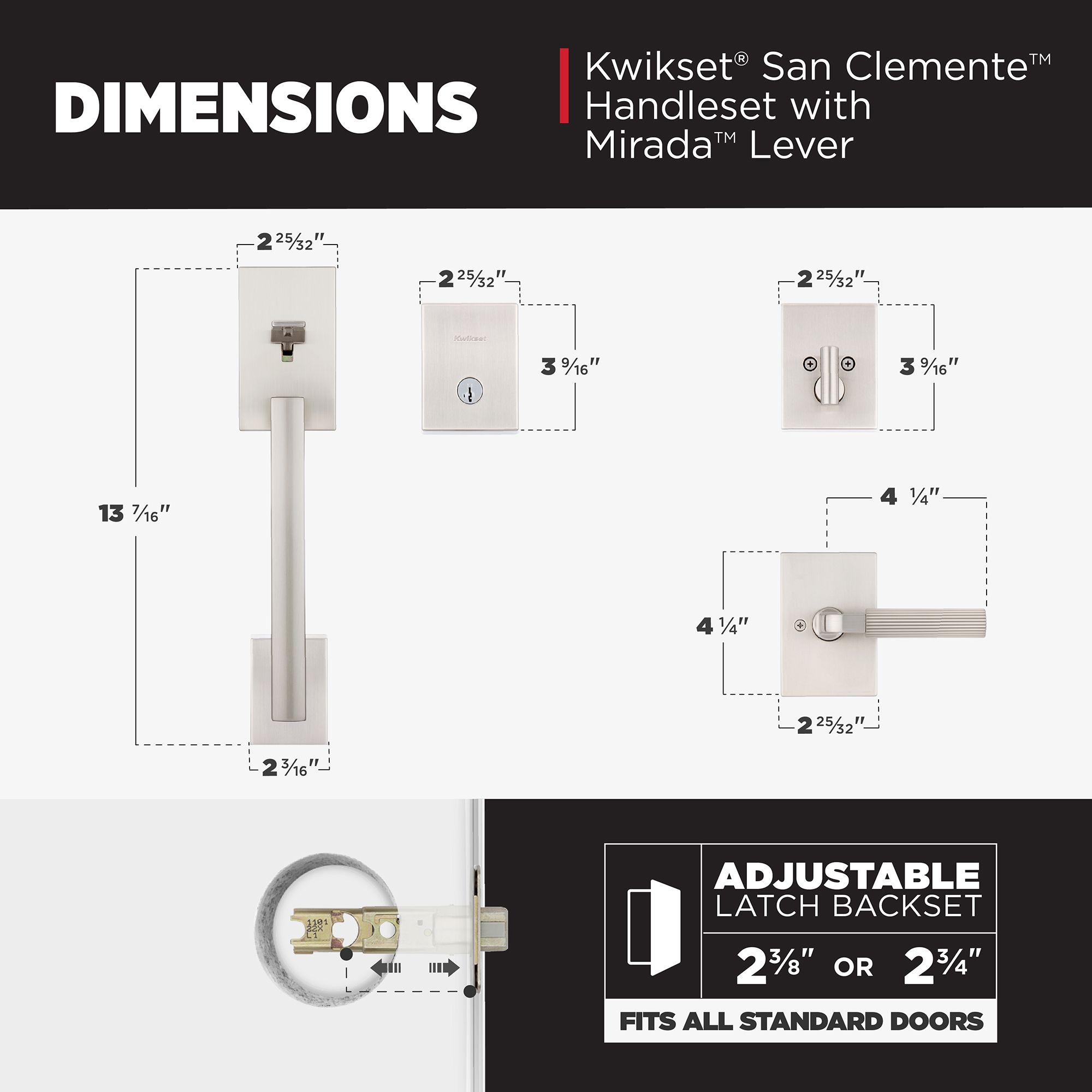

  • Assembled Height
    17-15/16
  • Assembled Width
    2-25/32
  • Assembled Length
    2-5/8
  • Lever Handling
    Reversible
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
