Metal Interconnect Levers - 660 Deadbolt with Kingston Passage Lever

507KNL 26D

Function:

Plain Latch

Features

  • Comes with 2 keys
  • Latch has round corner faceplate
  • Meets ADA/ANSI A117.1 requirements
  • ANSI/BHMA grade 2 certified
  • Latch has 2 3/8 in. backset
  • 1 in. deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime Mechanical, 5 Year Finish

Similar Products

Metal Interconnect Levers - Key Control Deadbolt with Kingston Passage Lever

5 Finishes

Metal Interconnect Levers - Key Control Deadbolt with Kingston Passage Lever
Light Commercial

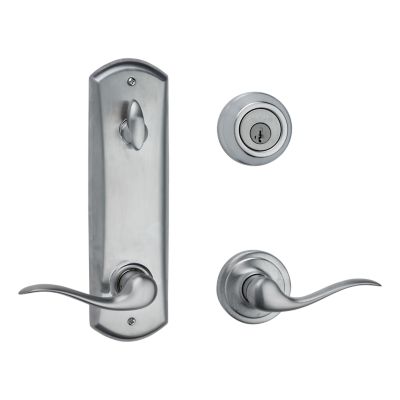

Metal Interconnect Levers - Key Control Deadbolt with Tustin Passage Lever

7 Finishes

Metal Interconnect Levers - Key Control Deadbolt with Tustin Passage Lever
Light Commercial

Specifications

All Measurements are in Inches

  • Kwikset Family
    Kingston
  • Product Type
    Lever
  • Style
    Traditional
  • Has Microban?
    No
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2.625
  • Assembled Width
    3.84
  • Assembled Length
    2-23/32
  • Lever Handling
    Reversible
  • Latch Backset Size
    2-3/8
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes
