Key Control Deadbolt

Traditional master key or multi lock systems are labor intensive, time consuming and costly. With the first and only two-cylinder Key Control Deadbolt, either cylinder can be re-keyed in seconds, without removing the lock from the door.

Smartkey security

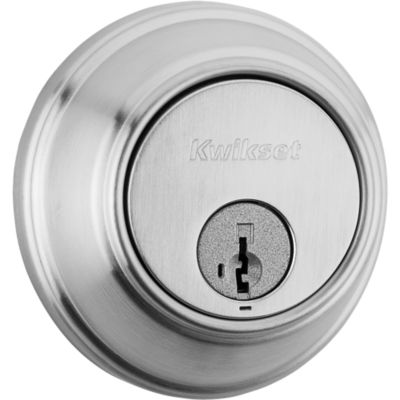

Key Control Deadbolt - UL - Keyed One Side - featuring SmartKey

817 26D SMT

How much can KeyControl save you?

Use our Key Control Calculator to compare the cost of re-keying a traditional "pin & tumbler" lock with a Kwikset Key Control lock.

$
Key Control™

Your Savings

9 minutes

$25 labor costs

Based on approx. 10 minutes & $25 in labor per lock to re-key with traditional lock & pin. See chart below for time spent.

Key Control Deadbolt1 Min
Traditional Pin & Tumbler10 Min

The Smart Alternative to Master Keying

Show 2nd Cylinder

KeyControl's innovative two-cylinder design.

Easily access rental units with a master key. This two cylinder design makes it easy to gain entry to any rental unit while also providing superior security with SmartKey Security.

Show 2nd Cylinder

Designed for Convenience.

  1. Master Key Cylinder
  2. Tenant Cylinder
Kwikset: Key Control Deadbolt

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Keyed Deadbolt: Use on doors requiring a high level of security, turn piece interior locking, exterior locking using a key. Recommended for exterior-facing doors
  • SmartKey Security: Kwikset’s SmartKey Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
  • Easy Install: Do it yourself, installs in minutes with just a screwdriver, all the hardware you need is included for a hassle-free installation, detailed directions provided
  • Adjustable Latch: By sliding the adjustment pin during installation, the latch backset can be adjusted to either 2-3/8" or 2-3/4" in order to fit all standard door preparations
  • Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home
  • Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset® warranty for more details

Specifications

All Measurements are in Inches

  • Kwikset Family
    816/7 KeyControl Deadbolt
  • Product Type
    Deadbolt
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    No
  • ANSI Grade
    Grade 2
  • UL Time Rating
    3 hr
  • Min Door Thickness
    1-3/4
  • Max Door Thickness
    1-3/4
  • Assembled Height
    3
  • Assembled Width
    2-13/16
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
