Keyed One Side

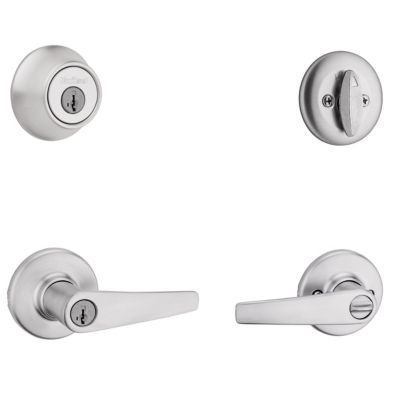

Delta Security Set - Deadbolt Keyed One Side - featuring SmartKey
690DL 26D SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features
- Keyed Entry: Use on doors where extra security is needed, turn piece interior locking, exterior locking using a key. Recommended for exterior-facing doors
- Never Sag Lever: Our exclusive design utilizes dual compression springs to keep the lever straight and horizontal over the lifetime of the handle without the risk of sagging
- Smartkey® Security: Kwikset’s SmartKey® Security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds
- Easy Install Reversible Lever: Do it yourself, installs in minutes with just a screwdriver. Reversible handle for left- or right-handed doors, detailed directions provided
- Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home
- Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details
- Box Includes: Box includes deadbolt, lever, adjustable latches with round and square front options or drive-in collar, round corner strikes, SmartKey® tool, 2 Kwikset keys, screws and Allen wrench
Specifications
All Measurements are in Inches
-
Kwikset FamilyDelta
-
Product TypeLever
-
StyleTraditional
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeGrade 3
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-5/8
-
Assembled Width3-5/8
-
Assembled Length1-7/8
-
Lever HandlingReversible
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
