Home / Products / Light Commercial / Carson Push Button Lever - Keyed - featuring SmartKey

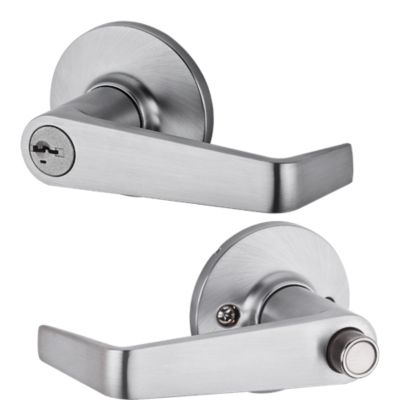

Carson Push Button Lever - Keyed - featuring SmartKey

438CNL 26D SMT

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • For use on exterior doors where keyed entry and security is needed
  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Latch is 20 minute fire rated with round corner face
  • Meets ADA/ANSI A117.1 requirements
  • ANSI/BHMA grade 3 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations

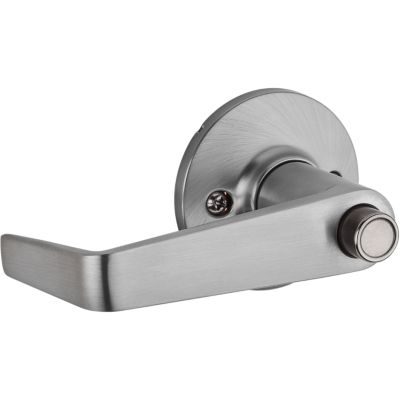

  • Locking mechanism functions by pressing the push button on the interior of the lock
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime Mechanical, 5 Year Finish

Similar Products

Kingston Lever - Keyed - featuring SmartKey

4 Finishes

Kingston Lever - Keyed - featuring SmartKey
Light Commercial
Kingston Push Button Lever - Keyed - featuring SmartKey

4 Finishes

Kingston Push Button Lever - Keyed - featuring SmartKey
Light Commercial
Carson Push Button Lever - Keyed - with Pin & Tumbler

4 Finishes

Carson Push Button Lever - Keyed - with Pin & Tumbler
Light Commercial

Specifications

All Measurements are in Inches

  • Kwikset Family
    Carson
  • Product Type
    Lever
  • Style
    Transitional
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    No
  • ANSI Grade
    Grade 3
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-14/25
  • Assembled Width
    3-4/5
  • Assembled Length
    2-31/100
  • Lever Handling
    Reversible
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
