Keyed One Side
Brentford Handleset
Brentford is the ideal handleset for any entryway. Its blend of soft curves and sleek lines elevates both classic and contemporary spaces.

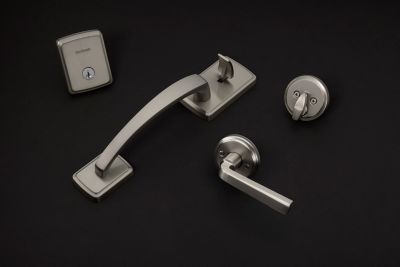

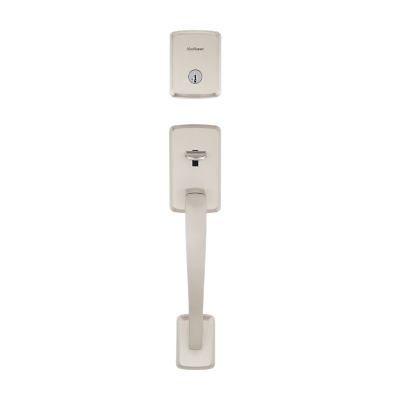

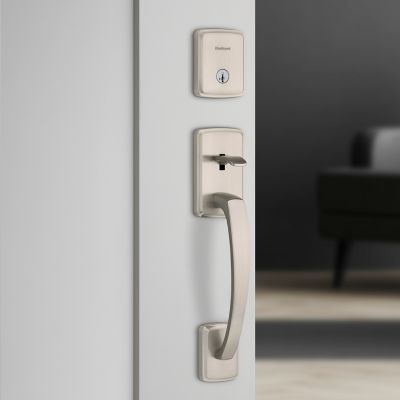

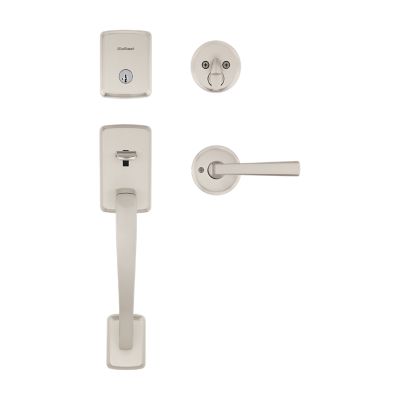

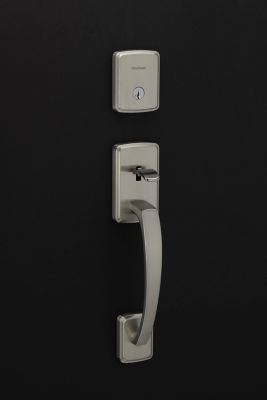

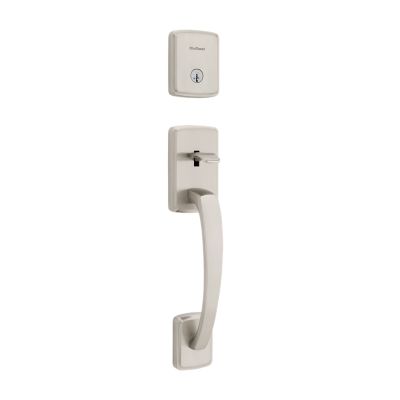

Brentford Handleset with Trafford Lever - Deadbolt Keyed One Side - featuring SmartKey
818BFHXTDL SMT 15
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features

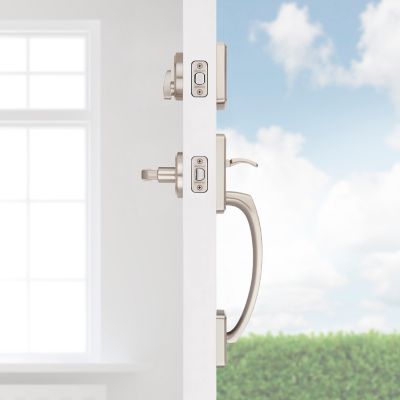

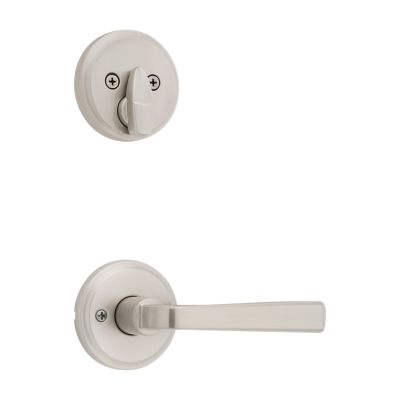

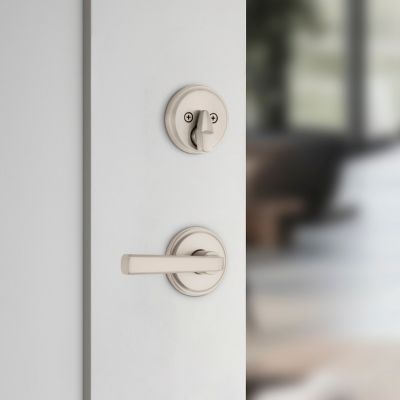

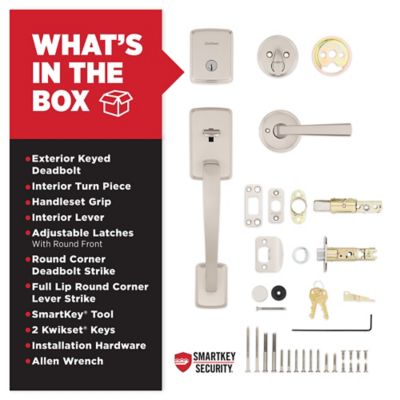

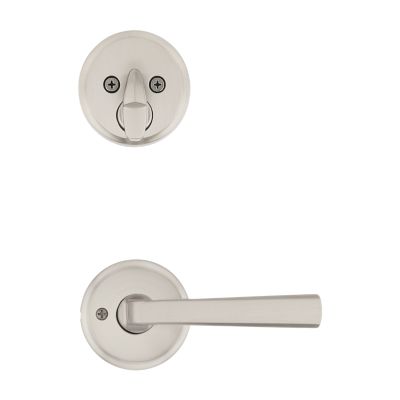

- Handlset with Deadbolt: Use on exterior front doors with two bore holes, comes with interior lever and locking deadbolt turn piece, key operated from outside
- SmartKey Security: Kwikset’s SmartKey Security technology protects against advancedbreak-in techniques and allows you to re-key your lock yourself in seconds

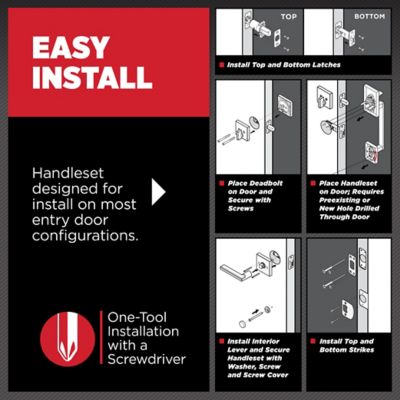

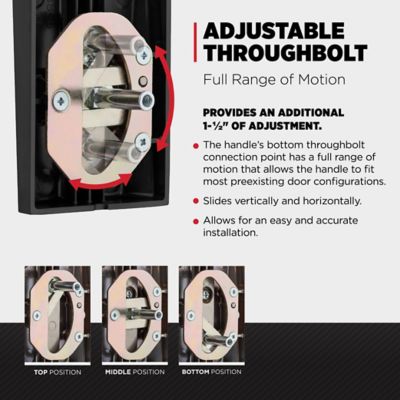

- Easy Install: Do it yourself, installs in minutes with just a screwdriver, if door is missing a bottom handleset support hole you will need a drill, directions provided
- Fits Standard Doors: Fits standard size doors 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" by sliding the adjustment pin during installation
- Certified Trusted Quality: Security, Durability and Finish are Grade AAA BHMA certified,designed for the highest level of security and the toughest environments with frequent use (deadbolt only)
- Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, limits apply, see Kwikset warranty for more details
Similar Products
3 Finishes
Brentford Handleset with Sora Knob (Round) - Deadbolt Keyed One Side - featuring SmartKey
Signature Series
3 Finishes
Brentford Handleset with Sedona Lever - Deadbolt Keyed One Side - featuring SmartKey
Signature Series
3 Finishes
Brentford Handleset with Henrik Knob (Round) - Deadbolt Keyed One Side - featuring SmartKey
Signature Series

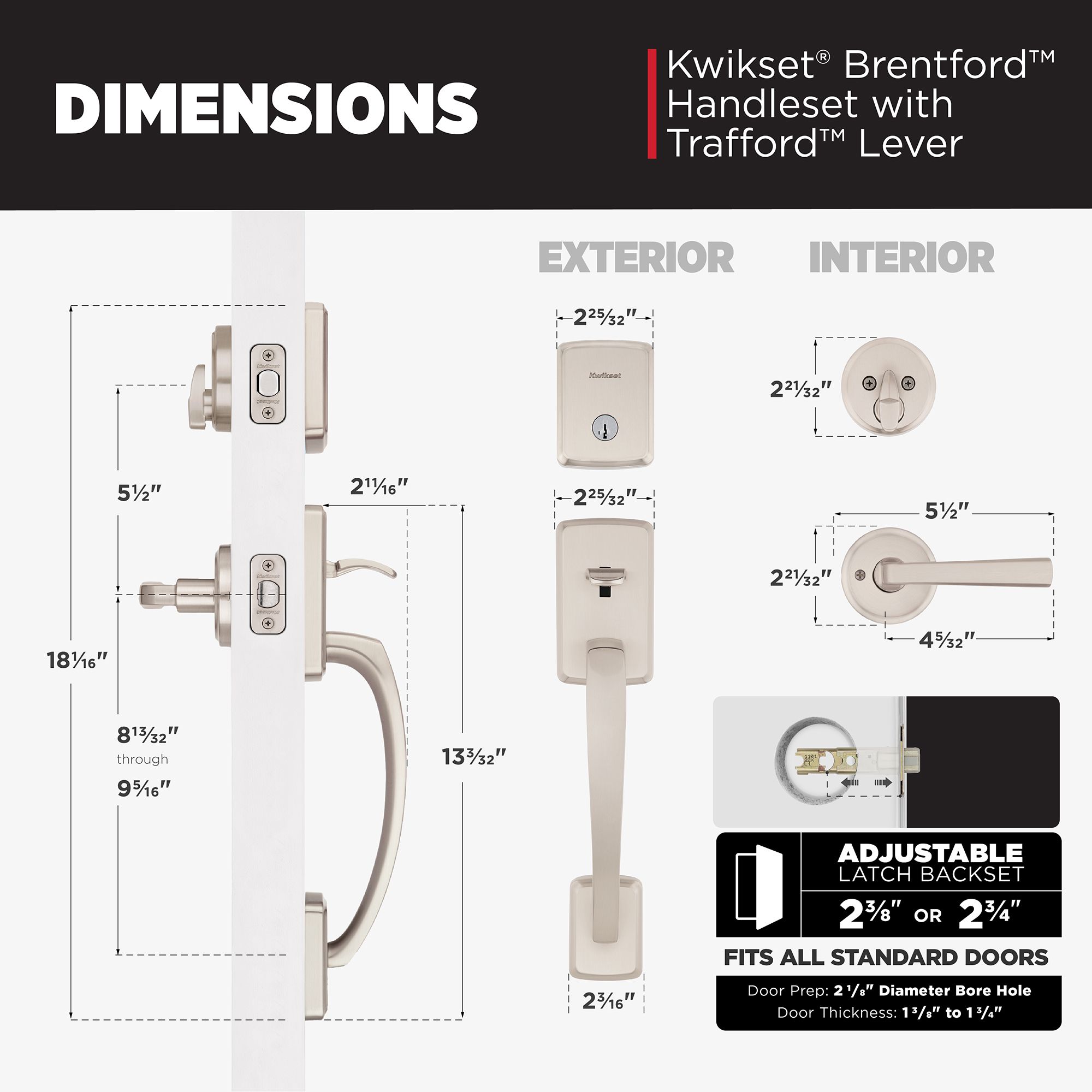

Specifications
All Measurements are in Inches
-
Kwikset FamilyBrentford
-
Product TypeHandleset
-
StyleTransitional
-
SmartKeyYes
-
Has Microban?Yes
-
ANSI GradeAAA (Deadbolt Only)
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height18-1/16
-
Assembled Width2-25/32
-
Assembled Length2-11/16
-
ADA CompliantNo
-
Body MaterialMetal
-
Key Quantity Per Pack2
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
