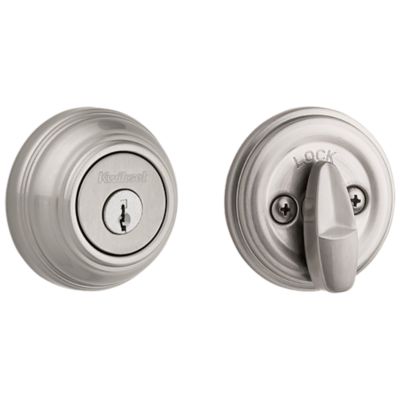

980 Deadbolt - Keyed One Side - with Pin & Tumbler

980 15

Features

  • Designer style and superior security with this Kwikset Signature Series™ product
  • For use on exterior doors where keyed entry and security is needed
  • Deadbolt operated by key outside and thumb turn inside
  • Comes with 2 keys
  • Deadbolt Latch has round corner faceplate
  • ANSI/BHMA grade 1 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Includes round deadbolt strike
  • 1 inch deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    980 Deadbolt Series
  • Product Type
    Deadbolt
  • Style
    Traditional
  • Entry Has SmartKey?
    No
  • ANSI Grade
    Grade 1
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Assembled Length
    1-1/32
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
