Keyed One Side

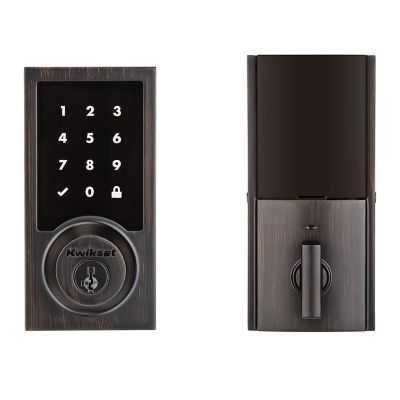

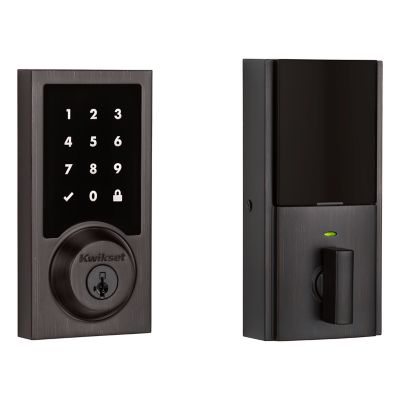

916 Smartcode Contemporary Electronic Deadbolt with Z-Wave Technology
916CNT ZW500 11P
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Integration Partners
Kwikset smart locks are offered by leading smart home solution providers and security systems. A total home security solution begins with a Kwikset smart lock. Complete your smart home today!
Alarm.com
LittleBird
SmartRent
Features

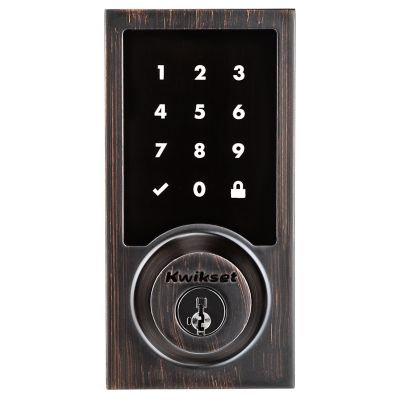

- The advanced capacitive touchscreen is ultra responsive to touch for instant screen display and features cool white LEDs for defined illumination
- Bright white LED’s for clear visibility in the brightest sunlight
- Secured keyless entry convenience
- One touch locking
- Dramatically reduced interior size and sleek metal design
- 30 user codes plus master code feature for added security
- BHMA grade 2 certified
- 20 minute fire rating - UL certified
- Full 128-bit encryption security
- SmartKey® technology - the lock you can re-key yourself in seconds in three easy steps
- SmartKey® re-key technology is compatible with Kwikset (KW1) keyway
- Patented Bump proof and Pick resistant side locking bar technology
- Installs in minutes with just a screw driver no hard wiring needed
- Fits standard doors (1-3/8in. – 2in.) no new screw holes required

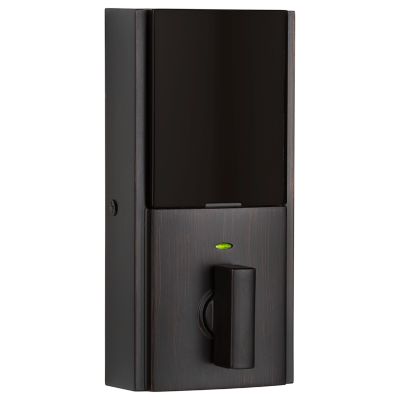

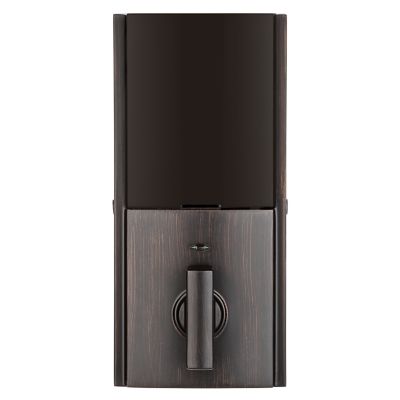

- Tamper resistant interior
- Z-Wave Plus Certified with the Z-Wave 500 chipset
- Extended wireless range and superior 128-bit wireless encryption
Compatible Technologies
-
Alexa
-
SmartThings
-
Wink
Similar Products
4 Finishes
910 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology
2 Finishes
Signature Series Deadbolt (Round) with Home Connect with Z-Wave Technology
Signature Series
3 Finishes
Aura Bluetooth Enabled Smart Lock
4 Finishes
914 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
2 Finishes
Signature Series Deadbolt (Square) with Home Connect with Z-Wave 500 Technology
4 Finishes
Halo Touchscreen Wi-Fi Enabled Smart Lock
2 Finishes
Halo Keypad Wi-Fi Enabled Smart Lock
4 Finishes
Kevo Contemporary Touch-to-Open Smart Lock, 2nd Gen
5 Finishes
910 SmartCode Contemporary Electronic Deadbolt with Z-Wave Technology
4 Finishes
914 SmartCode Contemporary Electronic Deadbolt with Zigbee Technology
4 Finishes
916 Smartcode Contemporary Electronic Deadbolt with Zigbee Technology
4 Finishes
Home Connect 620 Contemporary Keypad Connected Smart Lock with Z-Wave Technology
Specifications
All Measurements are in Inches
-
Kwikset FamilySmartCode Deadbolts Touchscreen with Home Connect
-
Product TypeDeadbolt
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
Has Microban?No
-
ANSI GradeGrade 2
-
Min Door Thickness1-3/8
-
Max Door Thickness2-1/8
-
Assembled Height5-17/32
-
Assembled Width2-25/32
-
Assembled Length1-3/16
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
-
Voice Control EnabledGoogle Assistant via Wink hub ; Google Assistant via Samsung SmartThings ; Alexa via Wink Hub ; Alexa via Samsung SmartThings
-
Lock TechnologyZ-Wave500
-
Hub RequiredHub required for remote access
-
Electronic Works WithAlexa ; SmartThings ; Wink
-
# Of Codes30
-
Battery Type Required4 AA, included
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
