Keyed One Side

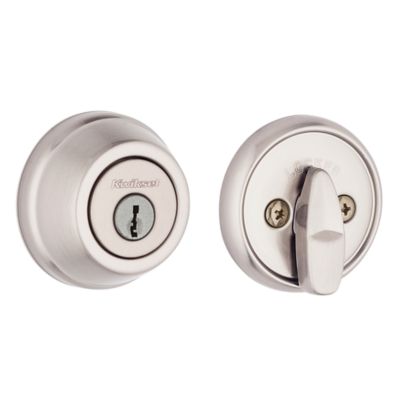

780 Deadbolt - Keyed One Side - with Pin & Tumbler
780 15
Features
- Keyed Deadbolt: Use on doors requiring a high level of security, turn piece interior locking, exterior locking using a key. Recommended for exterior-facing doors
- Easy Install: Do it yourself, installs in minutes with just a screwdriver, all the hardware you need is included for a hassle-free installation, detailed directions provided
- Fits Standard Doors: Fits standard size doors 1-3/8" to 1-3/4" thick, latch backset adjusts to either 2-3/8" or 2-3/4" with just a twist during installation
- Adjustable Latch: By sliding the adjustment pin during installation, the latch backset can be adjusted to either 2-3/8" or 2-3/4" in order to fit all standard door preparations
- Certified Trusted Quality: Security, Durability and Finish are Grade 3 BHMA certified, designed for reliable protection, providing peace of mind at home
- Warranty Protection: Our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset® warranty for more details
Similar Products
Specifications
All Measurements are in Inches
-
Kwikset Family780 Deadbolt Series
-
Product TypeDeadbolt
-
StyleTraditional
-
Entry Has SmartKey?No
-
Has Microban?Yes
-
ANSI GradeGrade 2
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height2-5/8
-
Assembled Width2-5/8
-
Assembled Length1-1/8
-
Cross Bore2-1/8"
-
ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
