Keyed One Side

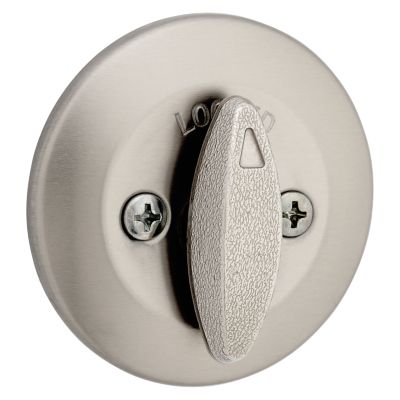

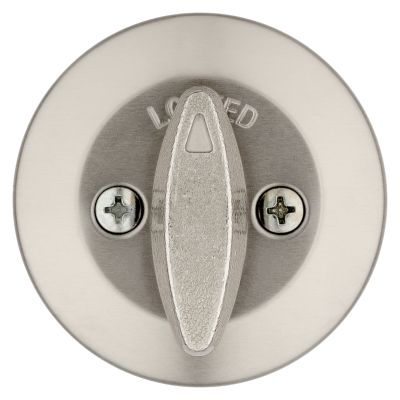

660 Deadbolt - Keyed One Side - featuring SmartKey
660 15 SMT
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.
Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features
- For use on exterior doors where keyed entry and security is needed
- Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
- SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
- Deadbolt operated by key outside and thumb turn inside
- Comes with 2 keys
- Deadbolt Latch has round corner faceplate
- ANSI/BHMA grade 3 certified
- Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
- 1 inch deadbolt throw
- Locking mechanism functions with turn piece on the interior of the lock
- Easily installs in minutes with just a screwdriver
- Lifetime mechanical and finish warranty
- Microban Antimicrobial product protection keeps door hardware 99.9% cleaner than unprotected surfaces
Similar Products
Specifications
All Measurements are in Inches
-
									Kwikset Family600 Deadbolt Series
-
									Product TypeDeadbolt
-
									StyleTraditional
-
									Entry Has SmartKey?Yes
-
									Has Microban?Yes
-
									ANSI GradeGrade 3
-
									UL Time RatingNot rated
-
									Min Door Thickness1-3/8
-
									Max Door Thickness1-3/4
-
									Assembled Height2-7/16
-
									Assembled Width2-7/16
-
									Assembled Length1-1/16
-
									Cross Bore2-1/8"
-
									ADA CompliantInterior Turn Piece Only
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
