Home / Products / Deadbolts / 667 One Sided Deadbolt - Thumbturn Inside, Plate Outside

667 One Sided Deadbolt - Thumbturn Inside, Plate Outside

667 26

Features

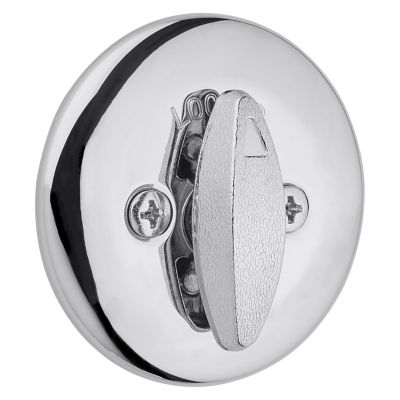

  • Deadbolt operated by thumb turn on interior, blank plate on exterior
  • Deadbolt Latch has round corner faceplate
  • ANSI/BHMA grade 3 certified
  • Latch has 2 3/8 in. backset
  • Includes round deadbolt strike
  • 1 inch deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Easily installs in minutes with just a screwdriver
  • Lifetime mechanical and finish warranty

Specifications

All Measurements are in Inches

  • Kwikset Family
    600 Deadbolt Series
  • Product Type
    Deadbolt
  • Style
    Traditional
  • Entry Has SmartKey?
    No
  • Has Microban?
    No
  • ANSI Grade
    Grade 3
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-17/32
  • Assembled Width
    2-17/32
  • Assembled Length
    3/8
  • Latch Backset Size
    2-3/8
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Interior Turn Piece Only

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
