Keyed One Side

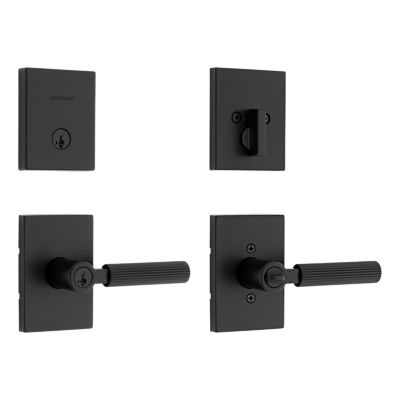

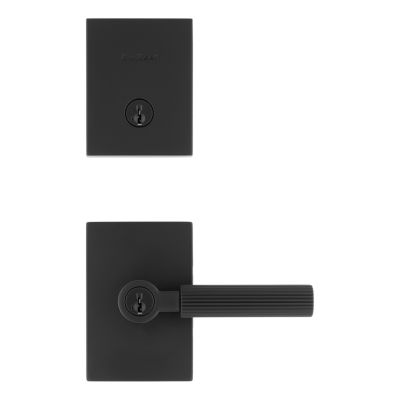

Mirada Security Set (Rectangle) - Deadbolt Keyed One Side - featuring SmartKey
991MAL RCT 514 SMT

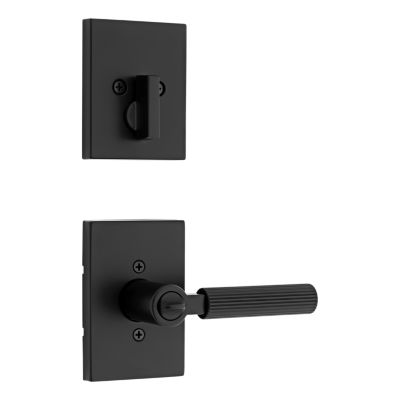

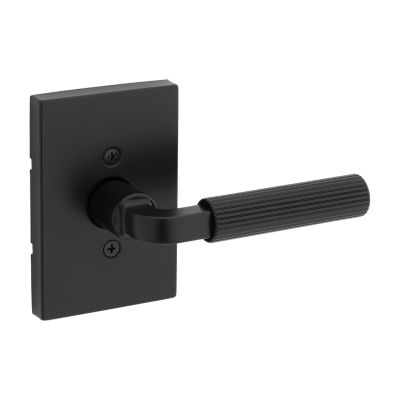

Complete the Look
The Locksmith's Choice.
We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.

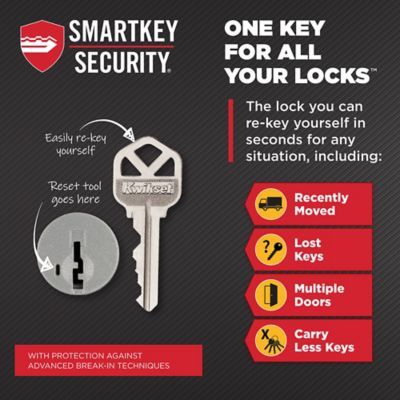

Re-Key to any KW1 Keyway Key
While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.
Features

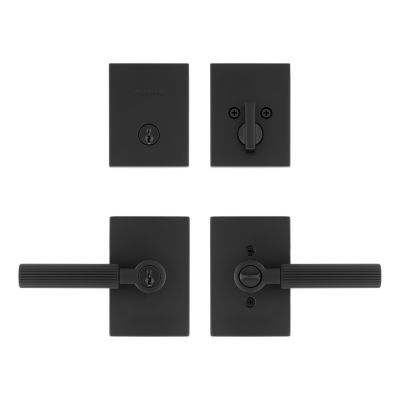

- COMBO PACK: use on doors requiring a high level of security, includes a deadbolt and keyed entry lever, recommended for a low-cost exterior door solution
- SMARTKEY SECURITY: Kwikset's smartkey security technology protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds

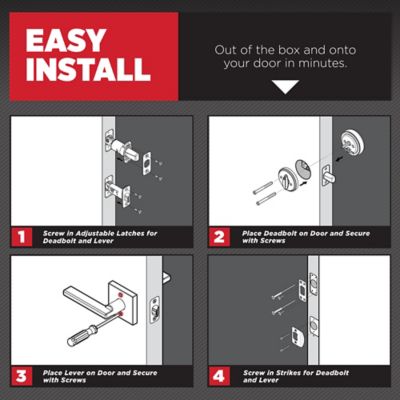

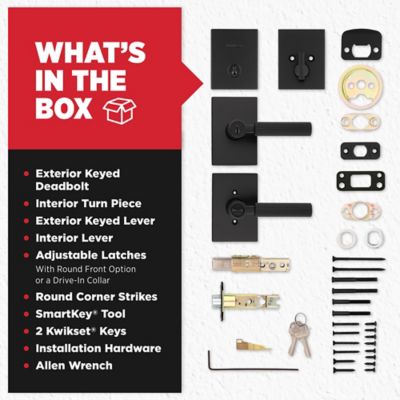

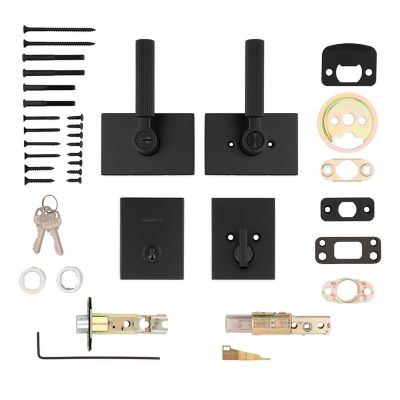

- EASY INSTALL: do it yourself, installs in minutes with just a screwdriver, all the hardware you need is included for a hassle-free installation, detailed directions provided

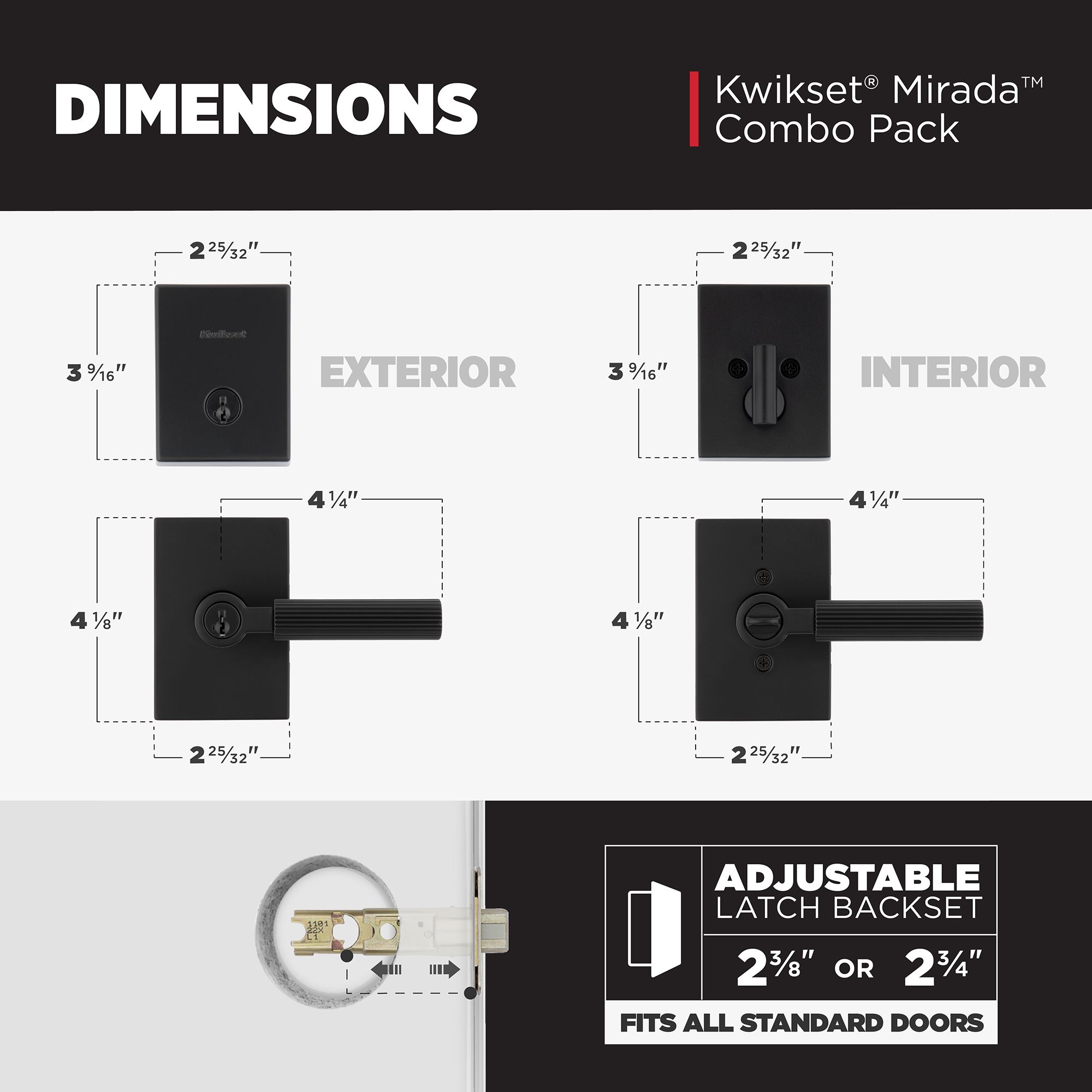

- FITS STANDARD DOORS: fits standard size doors 1-3/8 in. to 1-3/4 in. thick, latch backset adjusts to either 2-3/8 in. or 2-3/4 in. with just a twist during installation
- ADJUSTABLE LATCH: by sliding the adjustment pin during installation, the latch backset can be adjusted to either 2-3/8 in. or 2-3/4 in. in order to fit all standard door preparations

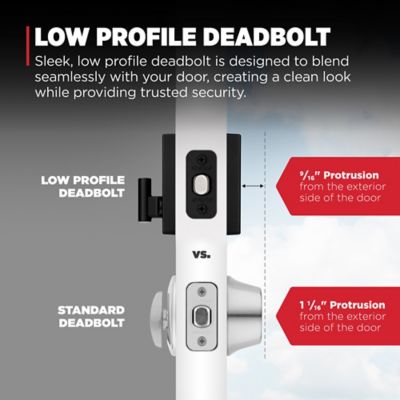

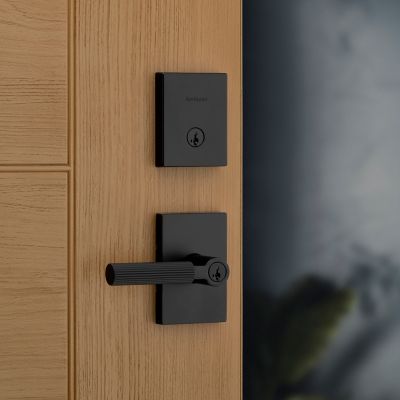

- LOW PROFILE DEADBOLT: sleek, low-profile deadbolt is designed to blend seamlessly with your door, creating a clean look while providing trusted security
- CERTIFIED TRUSTED QUALITY: security, durability and finish are grade 1 bhma certified, designed for the highest level of security and the toughest environments with frequent use
- WARRANTY PROTECTION: our products are backed by a lifetime mechanical and finish warranty with great customer service, see Kwikset warranty for more details

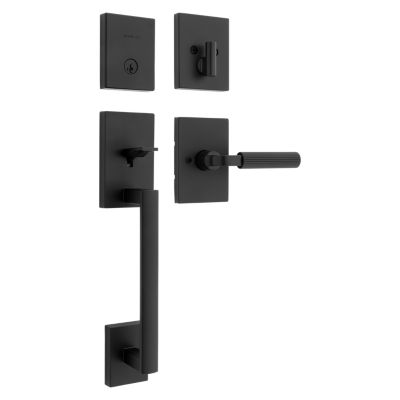

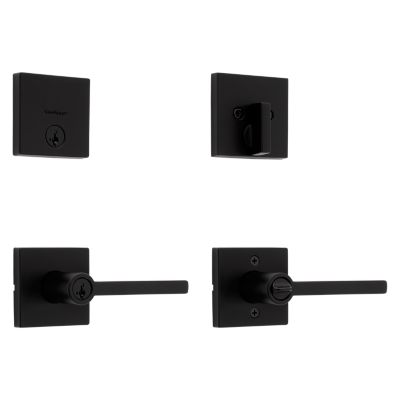

Similar Products
Specifications
All Measurements are in Inches
-
Kwikset FamilyMirada
-
Product TypeLever
-
StyleContemporary
-
Entry Has SmartKey?Yes
-
ANSI GradeGrade 2
-
UL Time RatingNot rated
-
Min Door Thickness1-3/8
-
Max Door Thickness1-3/4
-
Assembled Height4-1/8
-
Assembled Width5-5/8
-
Assembled Length2-13/32
-
Lever HandlingReversible
-
Latch Backset SizeAdjustable
-
Cross Bore2-1/8"
-
ADA CompliantNo
Support
Documents
Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
