Metal Interconnect Levers - Key Control Deadbolt with Commonwealth Passage Lever

508CHL 15

Discontinued
Function:

Plain Latch

Features

  • Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
  • SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
  • Comes with 2 keys
  • Meets ADA/ANSI A117.1 requirements
  • ANSI/BHMA grade 2 certified
  • 1 in. deadbolt throw
  • Locking mechanism functions with turn piece on the interior of the lock
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime Mechanical, 5 Year Finish

Similar Products

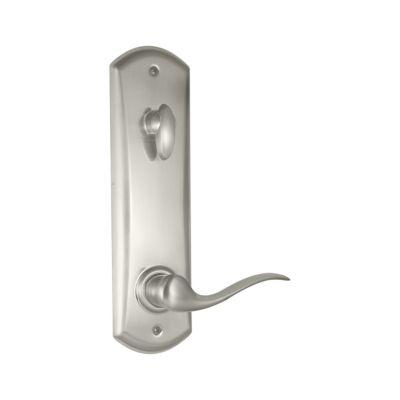

Metal Interconnect Levers - Key Control Deadbolt with Tustin Passage Lever

7 Finishes

Metal Interconnect Levers - Key Control Deadbolt with Tustin Passage Lever
Light Commercial

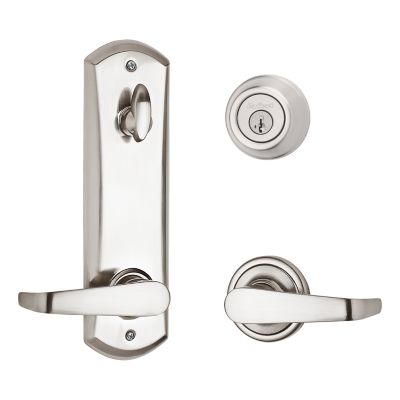

Metal Interconnect Levers - Key Control Deadbolt with Kingston Passage Lever

5 Finishes

Metal Interconnect Levers - Key Control Deadbolt with Kingston Passage Lever
Light Commercial

Specifications

All Measurements are in Inches

  • Kwikset Family
    Commonwealth
  • Product Type
    Lever
  • Style
    Traditional
  • Entry Has SmartKey?
    Yes
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/4
  • Max Door Thickness
    2-1/4
  • Assembled Height
    2-5/8
  • Assembled Width
    2-5/8
  • Lever Handling
    Reversible
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
