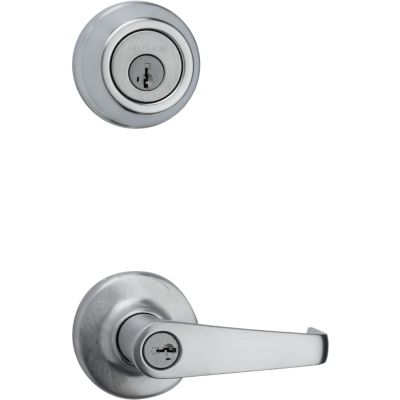

Metal Interconnect - 780 Deadbolt with Kingston Keyed Lever - featuring SmartKey

506KNL 26D SMT

Enlarge Photo

Discontinued

Product Image - kw_506knl-lv-icn-entr-26d-smt-cb
Function:

Deadlock Latch

  • SmartKey

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Specifications

All Measurements are in Inches

  • Kwikset Family
    Kingston
  • Product Type
    Lever
  • Entry Has SmartKey?
    Yes
  • Has Microban?
    No
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2-9/16
  • Assembled Width
    5-1/8
  • Assembled Length
    2-23/32
  • Lever Handling
    Reversible
  • Latch Backset Size
    2-3/8
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
