Home / Products / Light Commercial / Carson Lever - Hall/Closet

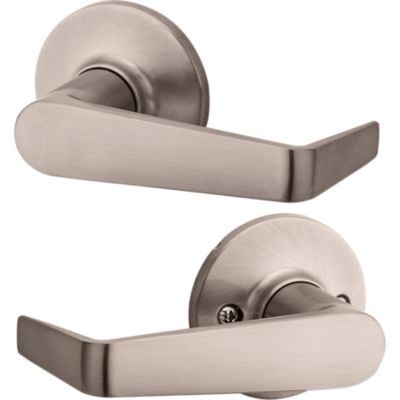

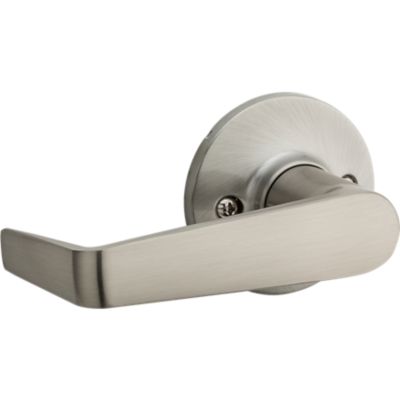

Carson Lever - Hall/Closet

407CNL 15

Features

  • For use on interior doors requiring no locking functionality, such as hallway or closet doors
  • Latch is 20 minute fire rated with round corner face
  • Meets ADA/ANSI A117.1 requirements
  • ANSI/BHMA grade 3 certified
  • Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
  • Meets or exceeds Underwriter Laboratories (UL) testing requirements specified for each product grade or rating
  • Fully reversible lever, can be installed on both right handed and left handed doors
  • Easily installs in minutes with just a screwdriver
  • Lifetime Mechanical, 5 Year Finish

Similar Products

Burbank Lever - Hall/Closet

4 Finishes

Burbank Lever - Hall/Closet
Light Commercial
Kingston Lever - Light Commercial - Hall/Closet

4 Finishes

Kingston Lever - Light Commercial - Hall/Closet
Light Commercial

Specifications

All Measurements are in Inches

  • Kwikset Family
    Carson
  • Product Type
    Lever
  • Style
    Traditional
  • ANSI Grade
    Grade 3
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    1-3/4
  • Assembled Height
    2.625
  • Assembled Width
    3.8
  • Assembled Length
    2-31/100
  • Lever Handling
    Reversible
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    Yes

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
