Home / Products / Electronic / 913 Smartcode Traditional Electronic Deadbolt

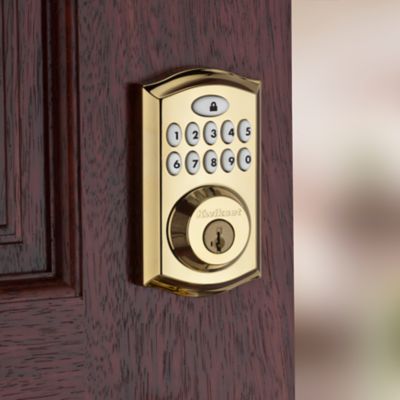

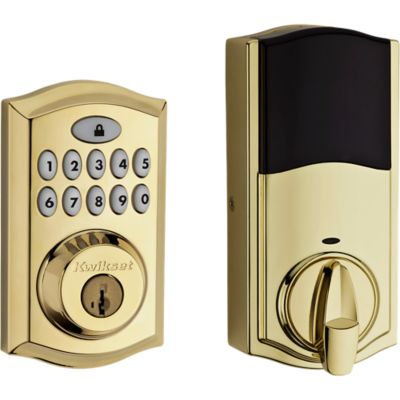

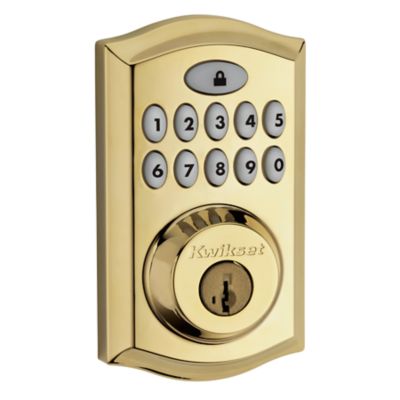

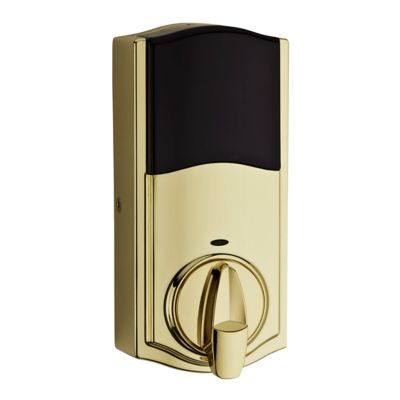

913 Smartcode Traditional Electronic Deadbolt

913TRL L03

Function:

Keyed One Side

The Locksmith's Choice.

We challenged locksmiths at the Associated Locksmiths of America (ALOA) to a picking and bumping contest pitted against the Kwikset SmartKey 980 Deadbolt.



Re-Key to any KW1 Keyway Key

While re-keying your door lock is not a requirement of lock installation, SmartKey allows you to quickly and easily reset your lock's cylinder to work with any KW1 Keyway key.

Features

  • Secured keyless entry convenience
  • One touch locking
  • Dramatically reduced interior size and sleek metal design
  • 16 user codes plus master code feature for added security
  • 10 digit backlit keypad with dedicated lock button
  • BHMA grade 2 certified
  • SmartKey® technology - the lock you can re-key yourself in seconds in three easy steps
  • 16 user codes plus master code feature for added security
  • SmartKey® re-key technology is compatible with Kwikset (KW1) keyway
  • Patented side locking bar technology offers improved security by protecting against lock bumping, an attack technique used to defeat conventional pin & tumbler locks
  • Installs in minutes with just a screw driver no hard wiring needed
  • Fits standard doors (1-3/8in. – 2in.) no new screw holes required

Similar Products

Specifications

All Measurements are in Inches

  • Kwikset Family
    SmartCode Deadbolts Touchpad
  • Product Type
    Deadbolt
  • Style
    Traditional
  • Entry Has SmartKey?
    Yes
  • ANSI Grade
    Grade 2
  • Min Door Thickness
    1-3/8
  • Max Door Thickness
    2
  • Assembled Height
    5
  • Assembled Width
    2-7/8
  • Latch Backset Size
    Adjustable
  • Cross Bore
    2-1/8"
  • ADA Compliant
    No
  • # Of Codes
    16
  • Battery Type Required
    4 AA, purchase separately
DimensionsImage

Support

Documents

Note: Do not use prints from this website to mark distances. Due to individual printers, dimensions on installation instructions may not print at an accurate scale.
