Do not use prints made from this website to mark distances.
Due to individual printers, dimensions on installation instructions may not print
at an accurate scale.
Kwikset products are backed by one of the most comprehensive warranty programs available. You can feel confident that with the purchase of Kwikset you have selected the best quality product, backed by the best customer service available.
This product comes with a lifetime mechanical and finish warranty to the original residential user of Kwikset against defects in material and workmanship as long as the original user occupies the residential premises upon which the product was originally installed. One year electronic warranty. This warranty DOES NOT COVER scratches; abrasions; deterioration due to the use of paints, solvents or other chemicals; abuse; misuse; or product(s) used in commercial applications. Upon return of a defective product to Kwikset Corporation, Kwikset may repair or replace the product or refund the purchase price. Kwikset is not liable for incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to state. If a mechanical or finish defect occurs, please call 1-800-327-LOCK (5625) in the U.S. and Canada or return it to Kwikset Corporation, Consumer Services, 19701 Da Vinci, Lake Forest, CA 92610. For customers outside of the U.S. and Canada, claims under this warranty must be made only to either the place of purchase or to the listed importer.
19701 Da Vinci
Lake Forest, CA 92610
Some of our product families have available specialty functions. The specialty products
listed below can be ordered through our Wholesale or Distribution Partners. Please refer to our
printed catalog for complete specialty products availability.

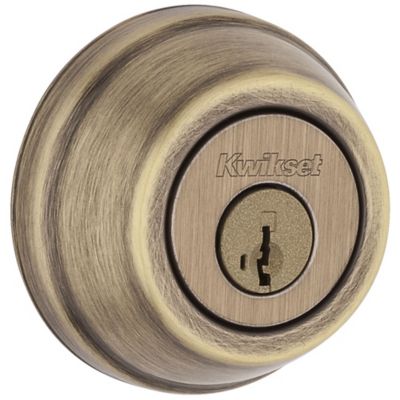

782 5 SMT
782 Single Cylinder Deadbolt UL in Antique Brass
Single Cylinder Deadbolt UL
784 5 SMT
784 Double Cylinder Deadbolt UL in Antique Brass
Double Cylinder Deadbolt UL

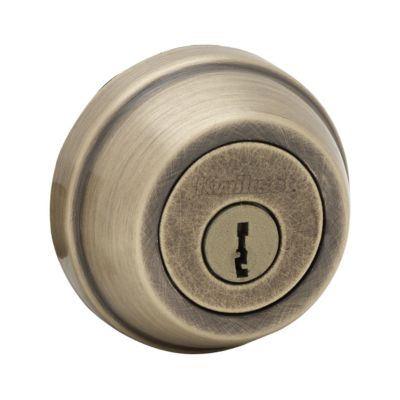

780 Single Cylinder Deadbolt in Antique Brass is rated out of 5 by 32.
Rated 5 out of 5
from Kwikset 780 Single Cylinder Deadbolt in Antique Br I have two (2) installed on my doors with the 740 Juno Entry Lock in Antique Brass. I like the smart key function so I can re-key both locks as necessary without having to take the cylinders to the store for re-keying. The installation goes together in a few minutes. Anyone can install this lock in an existing opening. We like the antique finish and the locksets work smoothly and perfectly. I'm a Kwikset consumer for life.
Date published: 2015-06-19
Rated 1 out of 5
from SMT key,not so smart I'm a local mobile Locksmith, not a distributor. I have trouble with the Smart key system. I have had several cylinders fail. I have some that don't work in the cradle. When a SMT is on the only door and there is no key the options are limited, compared to picking or the cost of a cylinder if you have to drill.
Date published: 2015-06-23
Rated 4 out of 5
from easy to install I manage a 230 unit apartment complex and i use the antique brass dead bolts they are easy to change out and are secure enough i use one on my own front door
Date published: 2015-02-24
Rated 5 out of 5
by The bob
from Great service I've had this for over ten years now with no problem. A long lubricant now and then and it is good as nrew
Date published: 2016-02-12
Rated 3 out of 5
from Good Purchase with Reservations Bought two sets of the single cylinder locks with matching Hancock handle sets utilizing the Smartkey function in antique brass. The single cylinders function flawlessly however, the antique brass finish does not match the antique brass finish for the Hancock style handle sets. Antique brass in any of the Kwikset cylinders (including the double cylinders) and matching handle sets should be a uniform color. It's my opinion that this variation in color is a quality control issue for Kwikset which can be corrected at the manufacturing facility even though the facility is outside of the USA. If there was no color variation, I would have given 5 stars.
Date published: 2012-07-11
Rated 5 out of 5
from Nice Solid Smooth Action We are loving our new deadbolts. maybe it's just because our old ones were so, well, old. We had to push the door and fiddle with them to get them to turn but these are a breeze.They feel very solid and secure but I can literally lock the door with the swipe of a finger.Great piece.And the SmartKey function? Genius. Just had a bunch of contractors over and re-keyed the whole house for their access in like 10 minutes. Now that the work is complete I changed the whole house back to the original locks. Perfect!
Date published: 2011-11-29
Rated 5 out of 5
from Replacing all locksets/doorsets at my new home. The ext handlesets with the smartkey feature worked great and was very easy to do. One key fits all. I would purchase this deadbolt again.
Date published: 2013-03-28
Rated 2 out of 5
from Fair Not impressed and would not choose Kwikset again. Some of the locks have trouble turning with the key. Constantly jamming up. We are removing them very soon.
Date published: 2011-07-04
What is the inner part of this lock made of?
Hello Lkelly22,Thank you for your interest in Kwikset model # 780-15-SMT. The inner part of this deadbolt is made of Zinc.Thank you,Kwikset Support Team
Date published: 2016-02-04
does one side have a latch? picture does not show
Hello old man,Thank you for your interest in Kwikset model # 780-5-SMT. This model includes the latch for the side of the door to keep the door closed.Thank you,Kwikset Support Team
Date published: 2016-02-01
I have a Kwikset deadbolt that is lose and spinning. There are no visible screws on the inside to tighten. I took the inside handle off so I could remove the inside plate and find the screws but the plate would not come off. How do I get this task done?
Hello JohnJ,Thank you for your interest in Kwisket model #780 L03 SMT. This model has visible screws located on the interior plate. These screws are holding the interior deadbolt to the door. If you do not see the screws on the plate, the model number you have provided may the the incorrect model number. The model number you may have is the #980 series. This will require a 1/16" allen wrench to loosen and remove the small set screw located under the turn piece on the interior deadbolt. Once this is removed the turn piece will then have the ability to be removed as well. At this point the cover plate that was held on by the turn piece should come off, and expose two more mounting screws under the plate.If further assistance is needed please contact Kwikset technical support at 1-800-327-5625.Thank you,Kwikset Support
Date published: 2015-12-14
neither key works in deadbolt but ok in lever, now what can I do to rekey deadbolt?
Hello Rwmorgan48,Below you will find some trouble shooting steps to reset your cylinder.1st: Insert the last key that you tried to program to the unit.2nd: Pull the key out a notch at a time and try to turn it at the same time to the quarter turn position to the right.3rd: If the key turns to the quarter turn position, insert your smart key tool and then remove your key.4th: Remove the key and Insert the key that came with the box and turn it back to vertical at 12 o'clock.5th: Then re-do the re-keying steps that came with the box.If further assistance is needed please contact Kwikset technical support at 1-800-327-5625.Thank you,Kwikset Support
Date published: 2015-12-08
what is the difference between the single cylinder and double cylinder deadbolt and will either lock key be compatible to the lodi door handle?
Hello jimbob12,The single cylinder deadbolt is keyed on the exterior side of the door and has a turn piece on the interior side for locking and unlocking. The double cylinder deadbolt is keyed on the interior and exterior side of the door for locking and unlocking. If the lodi door handle is a Kwikset Smart key compatible lock then you may rekey the lock to the same key as the deadbolt.Thank you,Kwikset Support
Date published: 2015-11-24
Where can I get a 2" latch for this deadbolt? I have a french door that a regular latch won't fit.
Hello Abuthemagician,Kwikset backsets are ajusted to 2-3/4" to 2-3/8" with no other alternates.Thank you,Kwikset Support
Date published: 2015-11-06
will this fit a 2" thick door? If not, will any of your products?
Hello anyman,Kwikset deadbolts can fit doors that are 1 3/8" to 1 3/4" standard. You can get a thick door kit to allow the deadbolt to fit on a door that is up to 2 1/4" thick. To request a thick door kit please call Kwikset Consumer Services at 1-800-327-5625.Thank you,Kwikset Support
Date published: 2015-11-06
While re-keying one of my deadblts the re-keytool popped out, and now no key works in the lock, I there a way to reset it?
Hello Tcruckm,Below you will find some trouble shooting steps to reset your cylinder.1st: Insert the last key that you tried to program to the unit.2nd: Pull the key out a notch at a time and try to turn it at the same time to the quarter turn position to the right.3rd: If the key turns to the quarter turn position, insert your smart key tool and then remove your key.4th: Remove the key and Insert the key that came with the box and turn it back to vertical at 12 o'clock.5th: Then re-do the re-keying steps that came with the box.If further assistance is needed please contact Kwikset consumer support at 1-800-327-5625.Thank you,Kwikset Support
Date published: 2015-09-14
